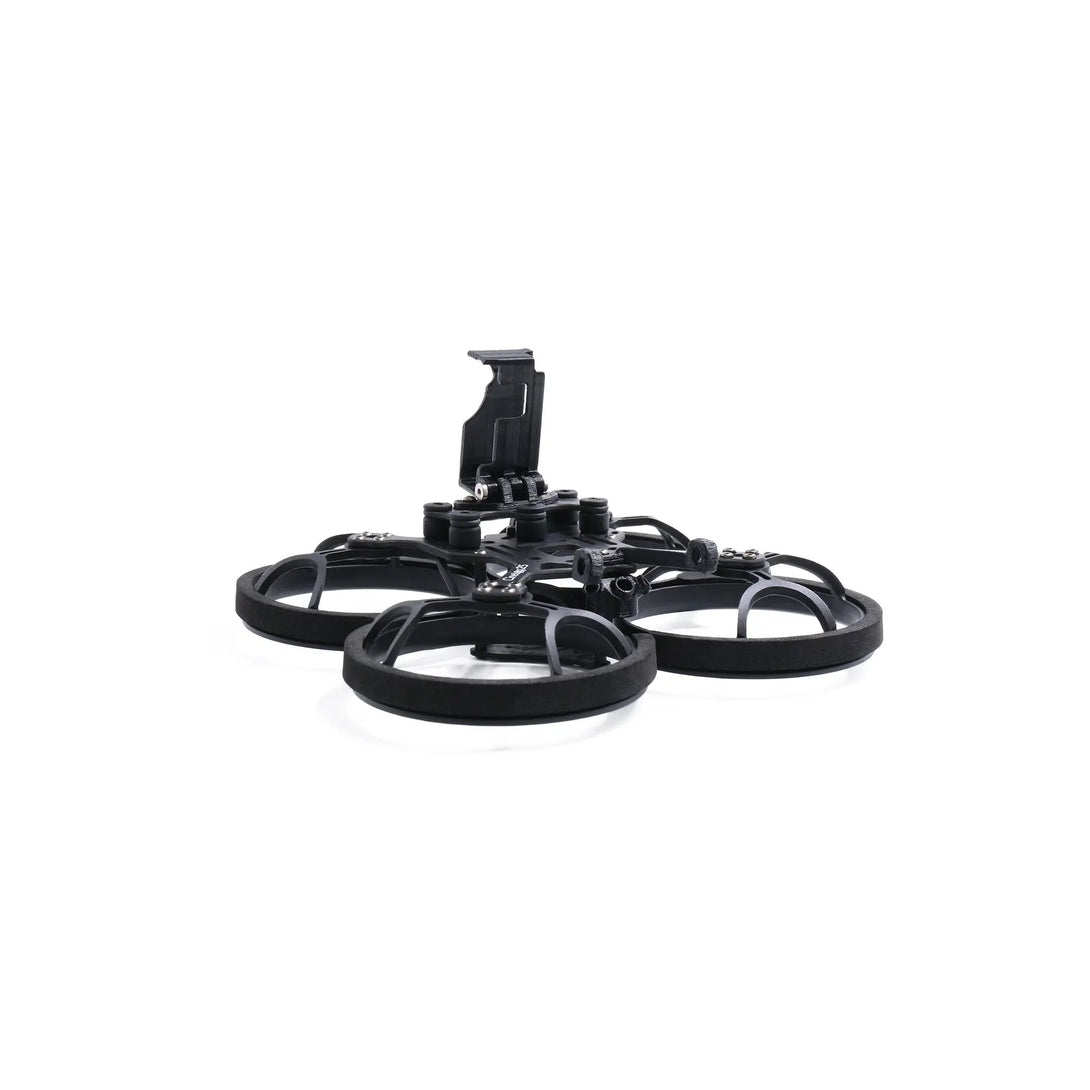

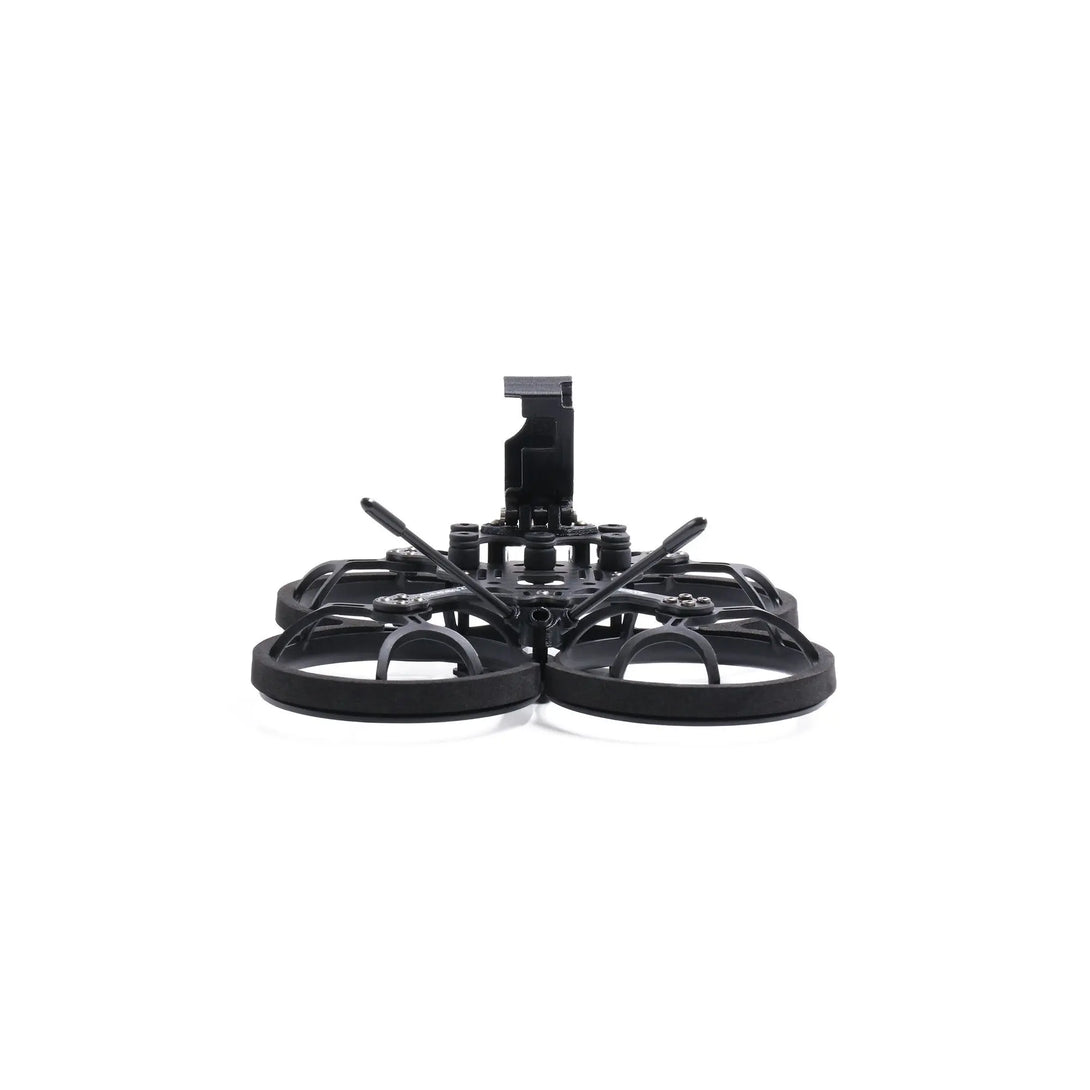

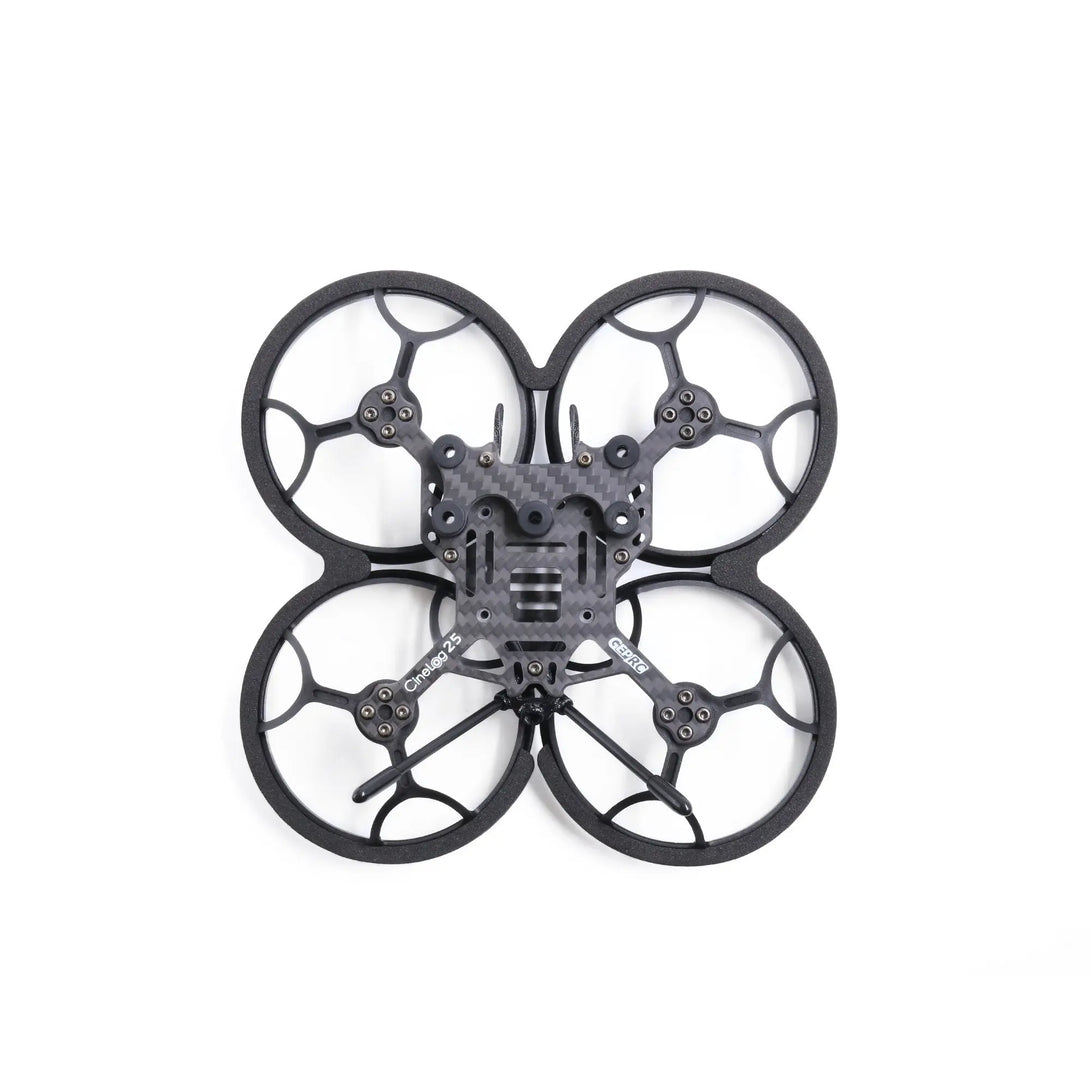

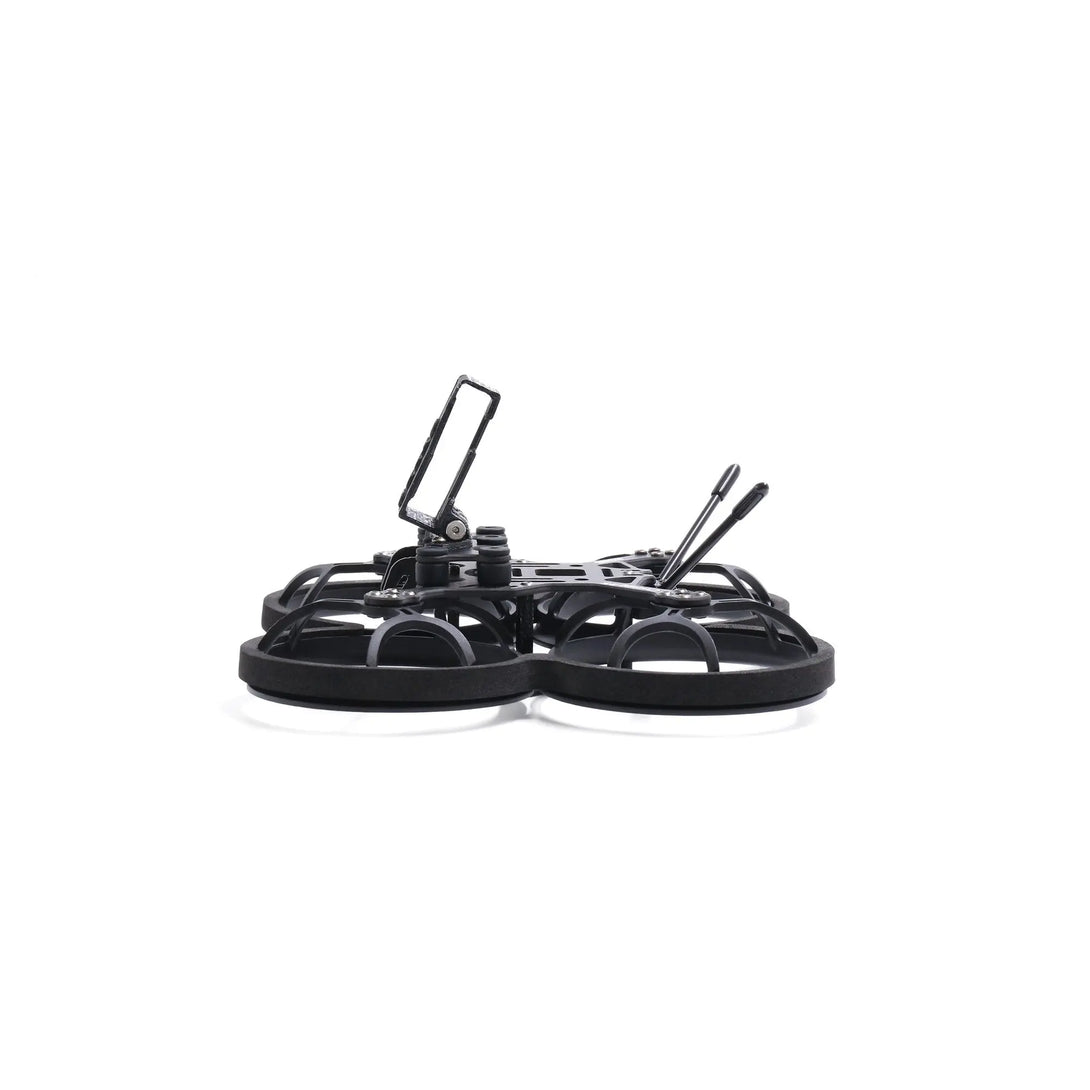

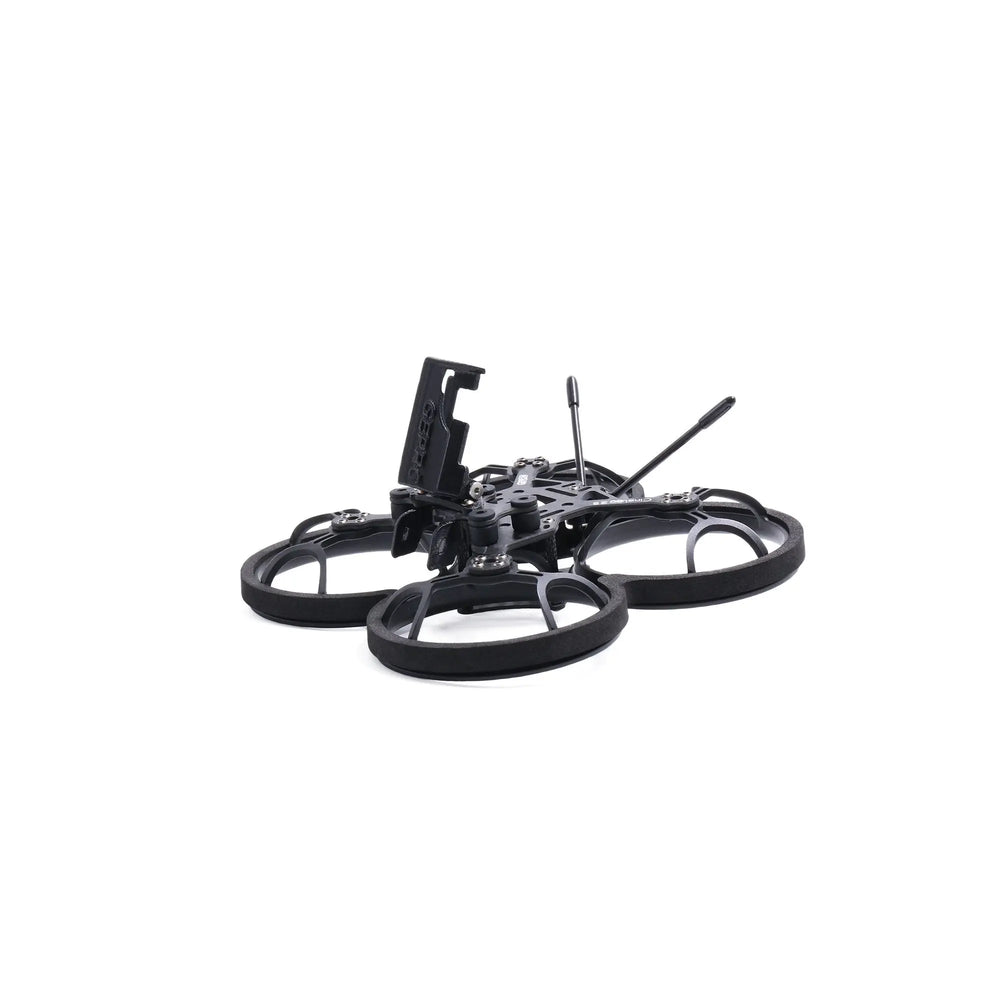

GEPRC Cinelog 25 frame kit
The GEP-CL25 chassis is designed by the GEPRC team. It can be used for Vista HD digital image transmission system or analog image transmission system. The center of gravity of the quadcopter is in the middle, Redesigned the shock absorption structure of the camera holder and GoPro Lite, Eliminated the jelly of the camera and FPV camera, and we can use 3, 4 and 5 damping rings according to the flight state to achieve the best stability in terms of vibration and noise.
Characteristics
- Brand: GEPRC
- Item: GEP-CL25 Frame
- Engine motor: 109 mm
- Inside diameter of the cap: 2.5 inches
- Camera Size: 19~20mm
- Propeller: 2.5 inches
- The motor hole size: 9mm (compatible with 1105/1204/1206 motor)
- The hole size of FC: 26.5*26.5mm
- Top plate thickness: 2.5mm
- Bottom plate thickness: 1.5mm
- Bottom plate thickness (camera): 2mm

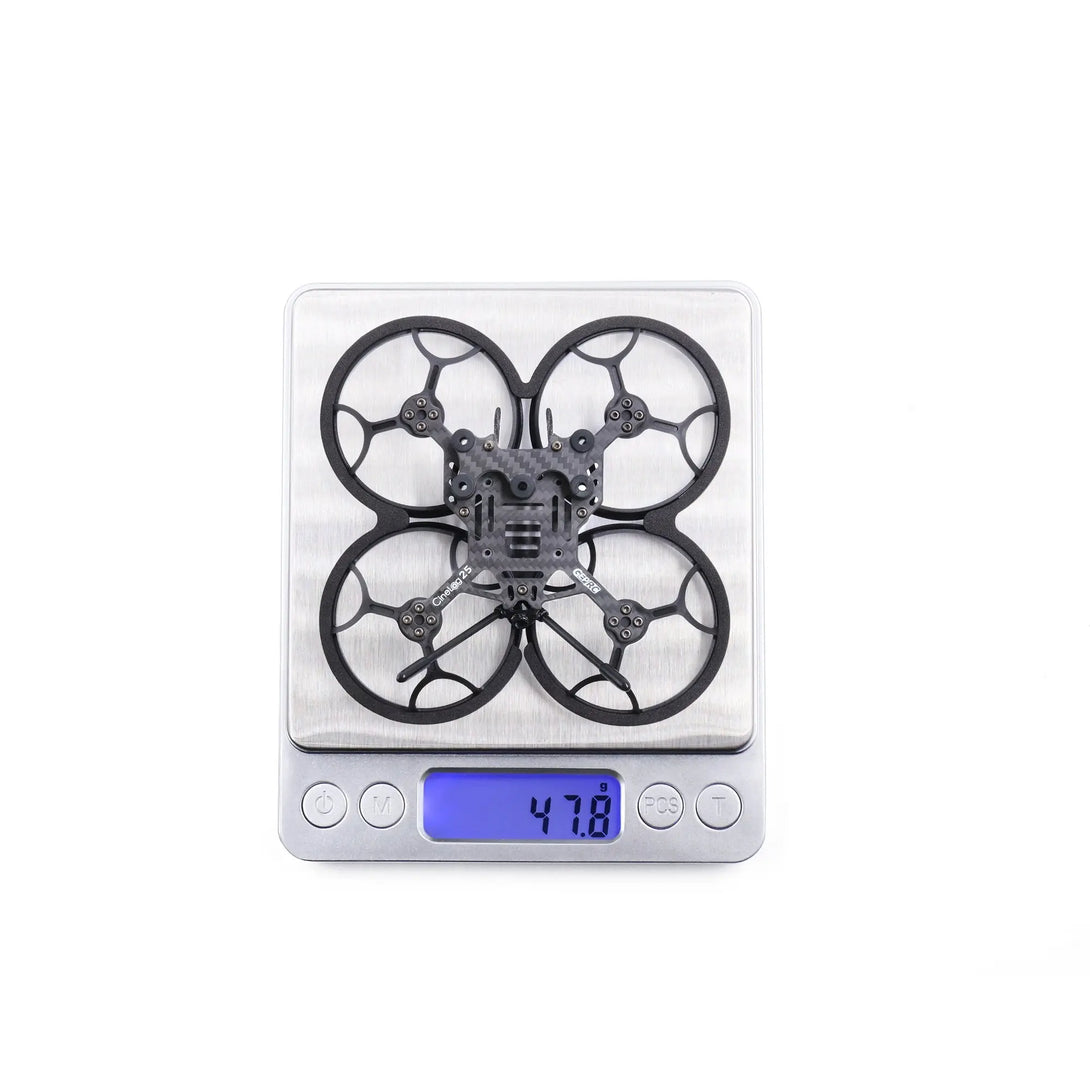

- Weight: 47.8 grams
Package Included
- 1x 2.5mm top plate
- 1x bottom plate 1.5mm
- 1x bottom plate (camera) 1.5mm
- 4x（M2*3.5*25mm）Aluminum poles
- 2x（M2*3.5*8mm）Aluminum poles
- 28x (M2*6mm) YFS Round Head Screws
- 2x (M2*8mm) YFS round head screws
- 4x YFS countersunk screws (M2*12mm).
- 16x Nylon Nuts (M2*2mm).
- 4x YFS Countersunk Head Screws (M2*18mm).
- 5x damping rings
- 1x（19*19mm） Camera Mount
- 1x（14*14mm） Camera Mount
- 1x XM antenna 3D printing part
- 1x TBS antenna 3D printing part
- 1x Naked Camera Stand
- 2x Battery Pads
- 2x EVA landing pads
- 4x 2.5 inch protectors
- 1x EVA damping protection ring
- 2x antenna tubes
- 2x Battery Straps (M15*150mm)
Assembly Video Link
