From progress to evolution, a complete reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.
This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the O3 Air Unit video transmission version. Based on the built-in anti-vibration requirements of the O3 Air Unit for fuselage shock, the Cinelog25 V2 can achieve excellent anti-vibration effects by matching the camera's damping ball.
It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance. Install the propeller guard which can effectively prevent people from being injured due to flight errors. Equipped with M10 GPS chip, quickly search for satellites.

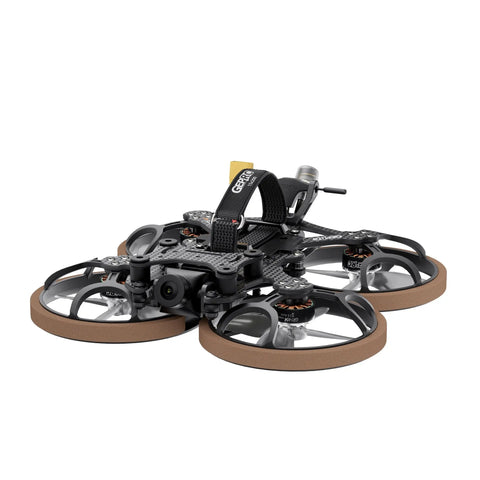

Cinelog25 V2 is a 2.5 inch high definition FPV that integrates indoor and outdoor flight. Developed by GEPRC team, the flight feels delicate and the experience is good.
Characteristics
- Add O3 air unit image transmission version, ultra-light weight within 250g. Fits FAA flight standards.
- The O3 camera design is independently connected to the shock-absorbing gimbal to solve the camera IMU resonance problems and achieve the best video anti-shake effect.
- Aluminum parts designed with cable ties for easy battery changes.
- Use the new TAKER G4 35A AIO, it has better computing power. ESC overcurrent protection makes it stable and reliable.
- Design the propeller guard, which can effectively prevent people from making flying mistakes.
- The fuselage is small and compact, suitable for indoor and outdoor. Mounting the GoPro8 naked to shoot beautiful videos.
Specifications
- Model: Cinemag25 V2 Analog Quadcopter
- Frame: GEP-CL25 V2
- Wheelbase: 114 mm
- Gimbal plate: 2.0mm
- Top plate: 2.5mm
- Bottom plate: 2.0mm
- FC System: TAKER G4 35A AIO
- MCU:SMT32G473CEU6
- Gyroscope: ICM 42688-P
- OSD: Betaflight OSD with AT7456E
- ESC: 8 bit 35A
- VTX: GEPRC RAD 5.8G 1W (UFL)
- Camera: Caddx Ratel2
- Antenna: GEPRC Peano 5.8G RHCP UFL
- Engine: SPEEDX 1404 4500KV
- Propeller: HQProp DT63mm*4
- GPS: M10 nano (optional)
- Cinelog25 V2 ELRS24 analog weight: 148 g±5 g
- Receiver: PNP / GEPRC ELRS24 / TBS Nano RX
- Recommended battery: LiPo 4S 660mah-850mah
- Flight time: 4′00″ -6′ 00″
- Battery Connector: XT30
Recommended Parts
- Tattu R-Line 650mAh 14.8V 4S1P 95C
- Tattu R-Line 750mAh 14.8V 4S1P 95C XT30
- Tattu 850mAh 4S 14.8V 75C XT30
- Tattu R-Line 850mAh 14.8V 4S1P 95C XT30
- DarwinFPV 850mAh 4S 15.2V 120C
Package Included
- 1x Cinelog25 V2 Analog Quadcopter
- 2x HQProp DT63mm*4(2 pairs)
- 1x M15*200mm battery strap
- 1x M15*150mm battery strap
- 2x Silicone Battery Pads
- 1x set of screws
- 1x 1.5mm L-shaped screwdriver
- 1x Keychain
- 1x GP8 base for bare camera
- 1x T-type antenna mount
