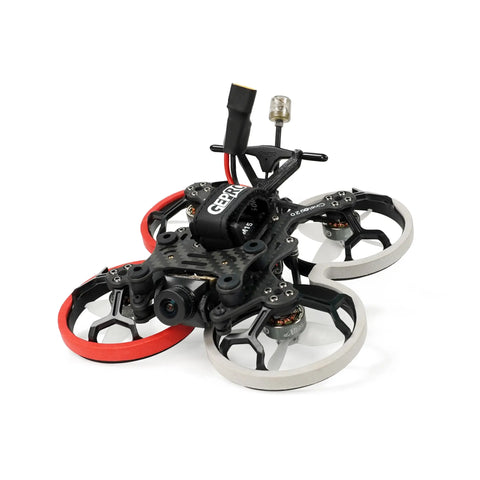

Characteristics
-
Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce the image jelly of FPV goggles, with good anti-vibration effect.
-
Provide traditional versions of Link Wasp, O3 AIR Unit and Walksnail HD, Bind-N-Fly video transmission to avoid the trouble of construction and tuning.
-
2 inch pusher design, small size and lightweight, more suitable for flight shooting in complex and narrow environments.
-
The SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers makes flying unhurried.
-
Continuing the vibration damping structure of the CineLog series, which can effectively eliminate the image jelly caused by the body during flight with a Naked GoPro mounted.
-
The GEPRC team's wonderful tuning and the overall flying feeling is delicate and flexible.
Specifications
- Model: CineLog20 analog
- Frame: GEP-CL20
- Wheelbase: 100 mm
- Gimbal plate: 2.0mm
- Top plate: 2.5mm
- Bottom plate: 1.5mm
- FC System: GEP-F411-35A AIO
- MCU: STM32F411CEU6
- Gyroscope: ICM 42688-P
- OSD: Betaflight OSD with AT7456E chip
- ESC: 8bit 35A
- VTX: GEPRC 5.8G@600mw
- Camera: Caddx Ratel2
- Antenna: GEPRC Peano 5.8G RHCP MMCX
- Engine: GR1303.5 5500KV
- Propeller: EMAX Avan Micro 2×2.4×4
- TBSNanoRX Analog CineLog20 Weight: 116 g
- Receiver: PNP (without receiver), ELRS2.4G, TBS Nano RX / RXSR
- Recommended battery: LiHv 4S 450mAh-660mAh
- Flight time: 4-6 minutes
- Battery mount: XT30
Recommended Parts
- Tattu 650mAh 4S1P 75C 14.8V XT30
- Tattu R-Line 650mAh 14.8V 4S1P 95C XT30
- Tattu R-Line 550mAh 14.8V 4S1P 95C XT30
- Tattu 450 MAh 4S1P 75C 14.8V XT30
Package Included
- 1x CineLog20 analog
- 2x 2 inch propellers (pairs)
- 1x GoPro Naked Base
- 2x M15*150mm battery straps
- 2x Silicone Battery Pads
- 2x EVA landing pads
- 1x set of screws
- 1x L-shaped screwdriver (1.5mm)
- 1x Fixed antenna tube
- 1x GoPro Naked 4S Power Cable (with balanced terminal head)
- 2x EVA anti-vibration protection rings
- 1x TBS antenna holder (vertical type)
- 1x TBS antenna mount (horizontal type)
- 1x TBS Antenna Printed Parts
The screw package includes:
- 3x M2 x 12mm pan head screws
- x2 M2 x 5mm round head screws
- 1x M2*8mm Round Head Screw with Bearing
- 3x M2*7mm round head screws
- 2x M2*8mm round head screws
- 2x M2 iron nuts
- 1x Self-clinching nut
