Taking your drone photography to the next level, the new Cinebot30 series takes you into the real world, shooting extreme footage.

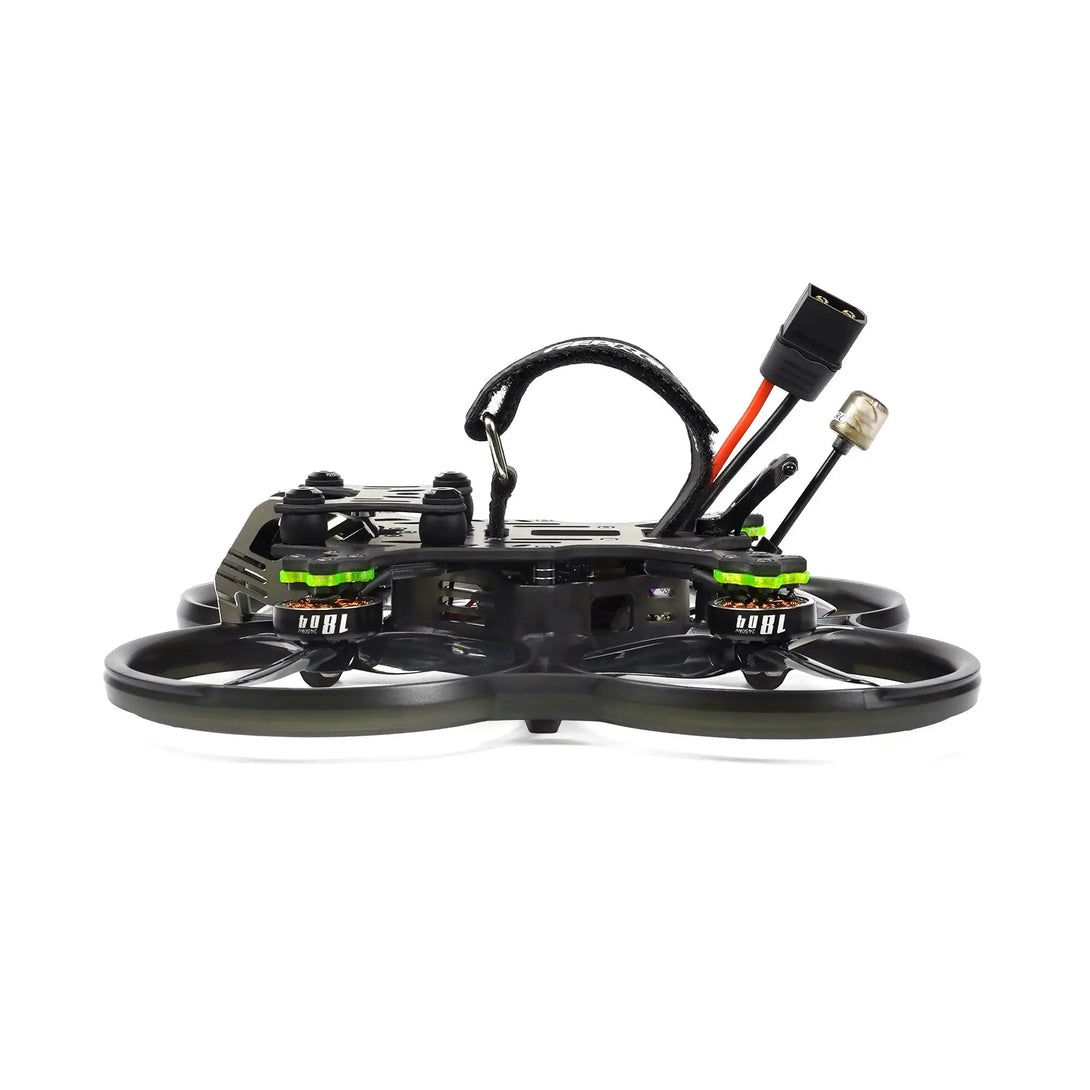

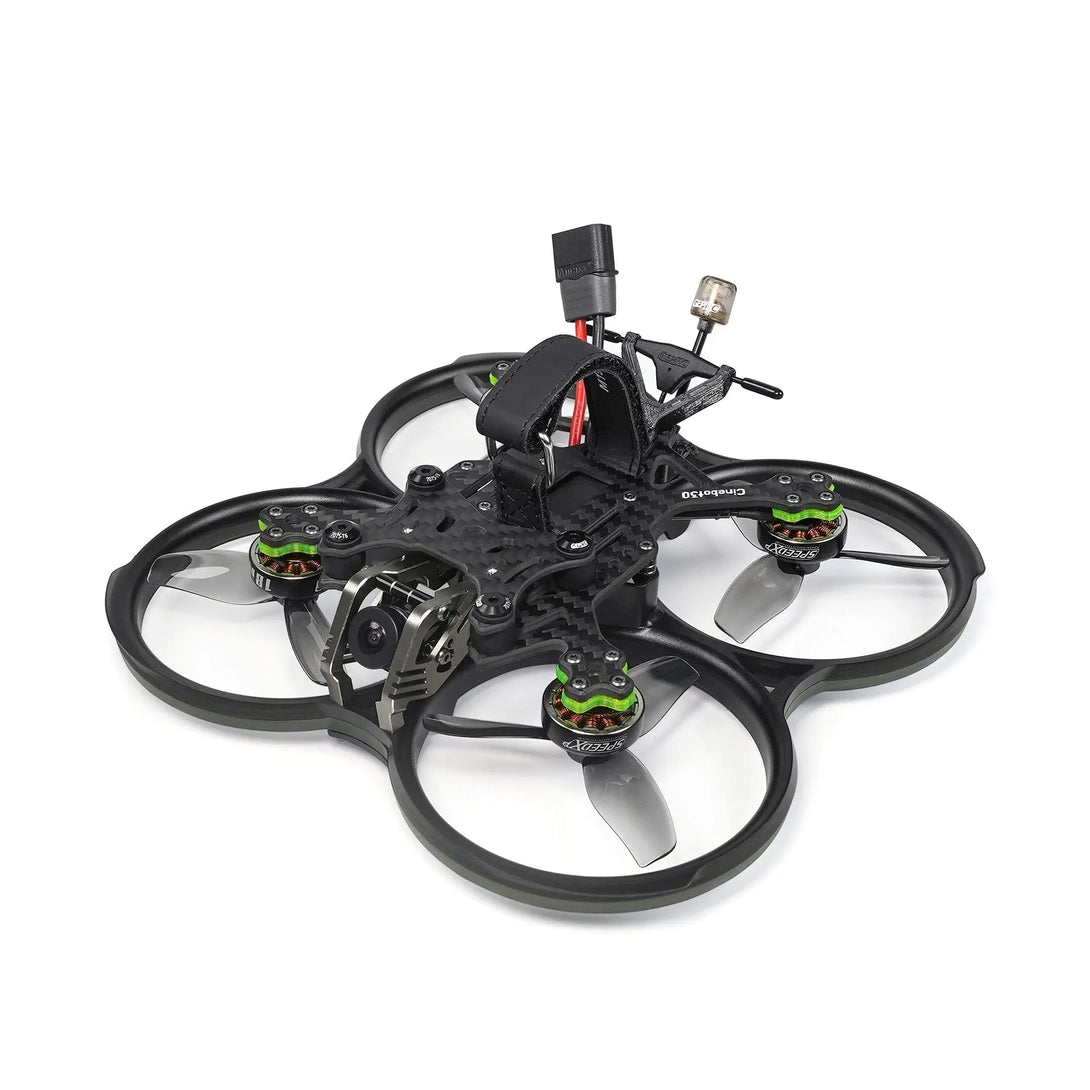

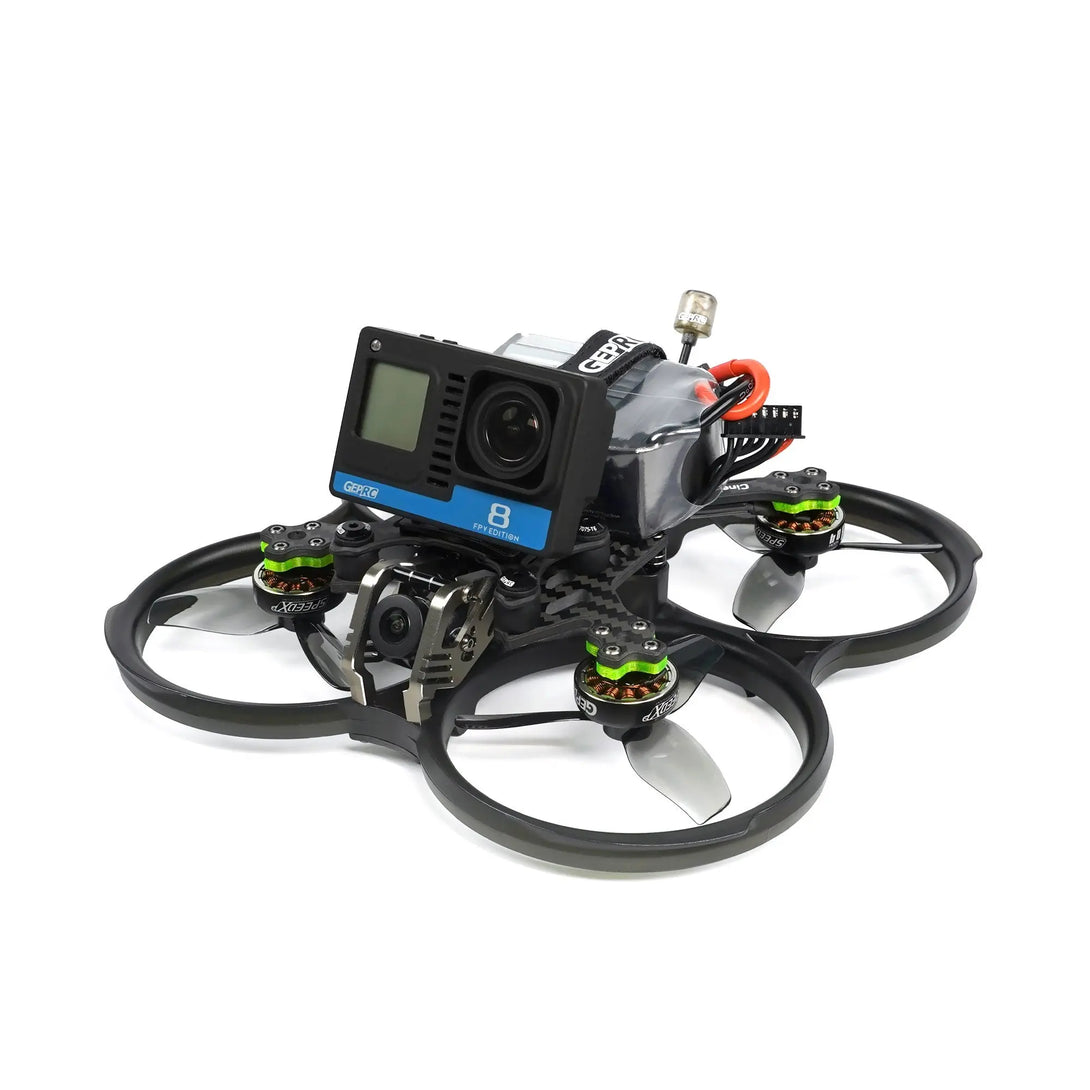

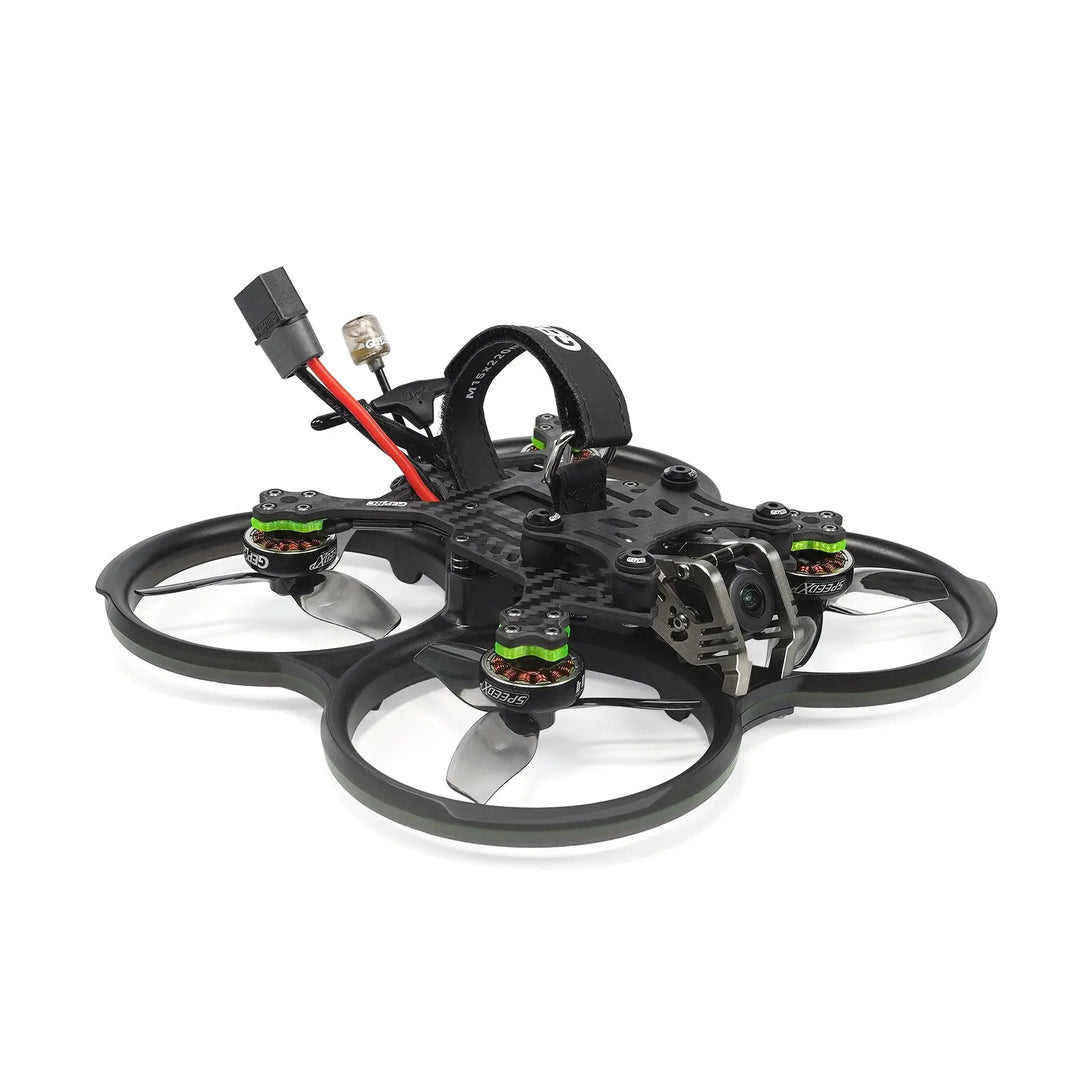

Cinebot30 is a new generation of Cinematic FPV drones developed by the GEPRC team. The high strength 7075 aviation aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily solve the high frequency vibration and jelly problems. Can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2 and other cameras. The image is stable and clear and is easy to film.
It adopts high-strength one-piece injection molded propeller guard and high toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the lighting effect is carefully adjusted. High strength grain carbon fiber plate, the overall strength of the fuselage is improved again!
Cinebot30 will be equipped with a powerful 1804 motor with optimized motor magnetic circuit and high torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it achieves the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy and easy handling of unexpected situations. Finely polished frame design, only need to remove 6 screws to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace accessories, at any time to restore the state.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Characteristics
1. Design that combines engineering and aesthetics.
2. Quick disassembly design, just need to remove 6 screws to upgrade or replace parts.
3. Selected high toughness and impact resistant PC material for injection molding.
4. Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.
5. Built-in ring of the propeller guard Cob light strip, carefully tuned light effect. The color brightness of day and night can be clearly displayed.
6. Newly developed gimbal shock absorption structure can disintegrate high-frequency jitter and jello effect. Easily carry a variety of action cameras.
7. Powerful 1804 motor, increasing torque to handle ultra-low altitude flight at will.
8. With new GEP-F722-45A AIO V2, stable performance, safer flight
9. Four kinds of FPV system with the program, choose to belong to your first-person view
10. Optimized by GEPRC professionals, delicate and silky flying feeling
Specifications
- Model: Cinebot30 HD Nebula PRO quadcopter
- Brand: GEPRC
- Chassis: GEP-CT30

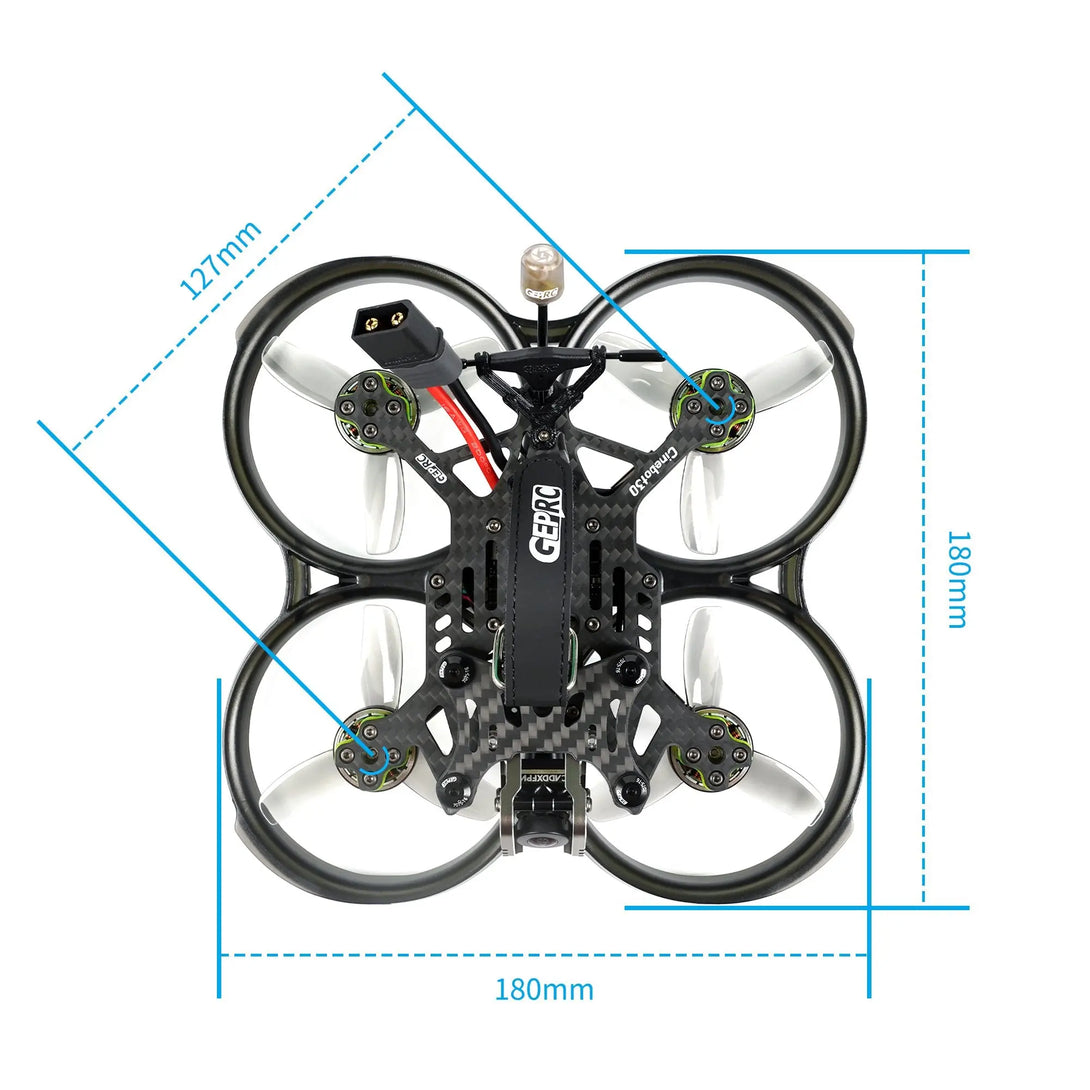

- Wheelbase: 127 mm
- Insulation plate: 2 mm
- Main plate: 3mm
- Bottom plate: 1.5mm
- FC: GEP-F722-45A AIO V2
- MCU: STM32F722RET6
- IMU: ICM-42688-P
- VTX: View
- Camera: Caddx Nebula Pro
- Propeller: HQ T76mm propeller
- Antenna: Peano 5.8G 110mm LHCP UFL antenna
- Charging connector: XT60H-M
- Motor: SPEEDX2 1804-2450KV (6S version)

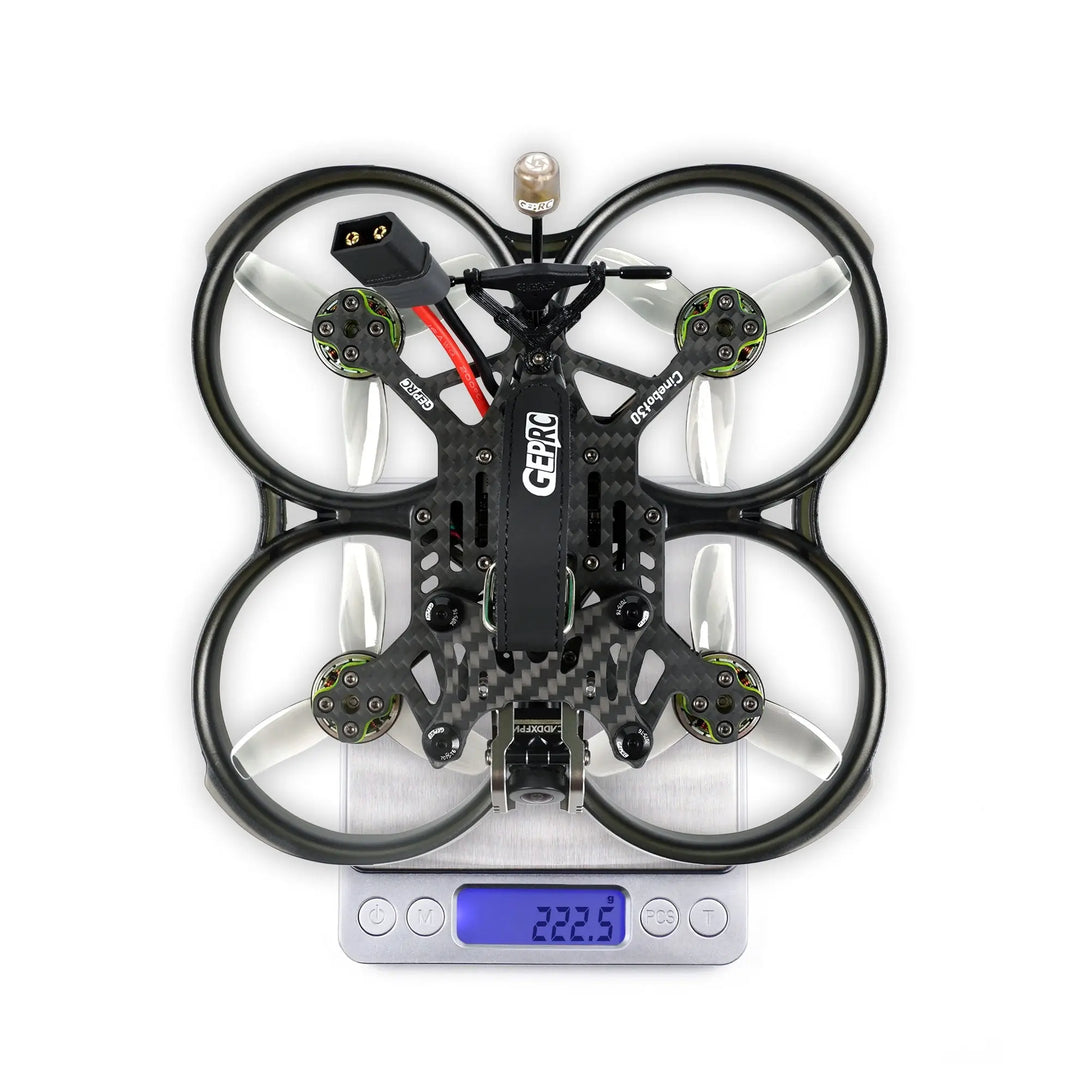

- Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g (excluding battery, the above is the TBS Nano RX version)
- Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G
- Recommended battery:LiPo 6S 850mAh-1100mAh (6S version)
Package Included
1 Cinebot30 quadcopter
2 x HQProp T76MM (pair)
1 x M15*200mm Battery Strap
1 x M15*220mm Battery Strap
2 x Silicone Drum Pads
1 set of screws
1 set of screwdrivers
1 x GoPro Camera Mount
1 set of screws
1 set of screwdrivers
1 fixed antenna tube
