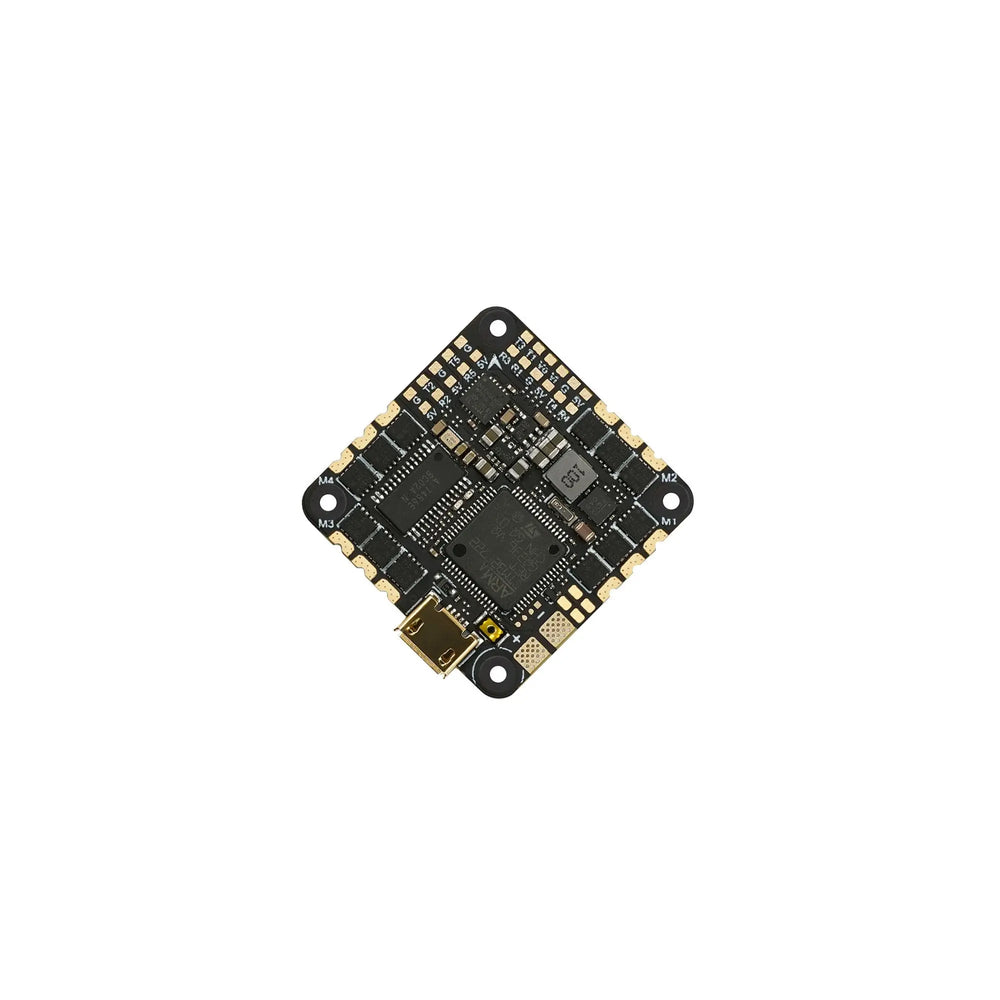

GEP-F722-35A AIO
GEP-F722-35A AIO adopts STM32F722 MCU, which provides powerful performance and faster processing speed. It has 5 full UART ports and can connect more external devices.
Designed with 6-pin connector for DJI AIR UNIT MODULE, just plug and play.
BLheili_S 35A ESC can handle 35A continuous current (40A burst), fully support 2-6S lipo battery, give the drone higher flight performance. It supports OSD parameter adjustment, buzzer, led and other functions. It is ultra-light 8.8g and 25.5mm*25.5mm mounting hole, suitable for most frames on the market.
We pursue lighter weight, smaller volume, more functions and better FC performance.
Change log:
June 14, 2022: Gyro updated to BMI270/42688.
June 25, 2022: The mounting hole size changed from 26.5×26.5mm to 25.5×25.5mm.
Specifications
- Model Name: GEP-F722-35A AIO
- MCU: STM32F722
- IMU: BMI270/42688 gyro/accelerometer (SPI)
- Firmware Destination: GEPRC_F722_AIO
- OSD: Betaflight OSD with AT7456Ev
- UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
- Buzzer: YES
- LED: YES
- USB: Micro USB
- BEC Output: 5V@1A
- Built-in LC filter
- MCU ESC: 8BB21F16G
- Continuous current: 35A
- MAX Current: 40A (10s)
- Input: 2~6S
- Supports: Dshot600, Oneshot, Multishot
- Black box: 16Mb
- Route: G_H_30
- Dimensions: 32x32 mm card
- Mounting hole: 25.5×25.5mm
- Weight: 8.8 g
Characteristics:
- MCU: STM32F722, with high performance and faster computing speed.
- It has 5 full UART ports, connecting multiple external devices
- 3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play.
- BLheili_S 35A ESC can handle 35A continuous current (40A burst), fully support 2-6S lipo battery, give your drone higher flight performance.
- Support OSD parameter adjustment, buzzer, LED and other functions.
- 8.8g ultra-light weight
- 25.5mm*25.5mm mounting hole, suitable for most frames
Package Included
- 1 AIO GEP-F7-35A
- 1 XT30-7CM-18AWG Power Cable
- 1 capacity 35V220UF
- 1 x SH1.0-6Pin to GH1.25-8Pin cable
- 8 x M2*6.5mm damping rings
Manual and Wiring Diagram:
