The R9 MX takes over the characteristics of the previous R9 Mini and R9 MM making it compatible with multiple external devices by providing an inverted S.Port output and supporting the redundancy function. Furthermore, it maintains soldering points to connect 4 PWM channels. The improved design proves more durable and, combined with the latest ACCESS firmware, the two are now in sync and we are able to unlock the true potential of the ACCESS protocol.
Description
FrSky 900MHz R9M 2019 Long Range Module System
The FrSky R9 and R9M radio control system is the first long-range FrSky system that operates at the frequency of 900 MHz. The R9M module offers 4 switchable RF power outputs so you can choose the appropriate power for different flight situations. Compared to another 2.4GHz long-range FrSky receiver like the L9R, the R9 receiver has a longer operating range of up to 10KM and beyond. Furthermore, the R9 is also a redundancy receiver that can be connected to another receiver to ensure the safety of your aircraft.
Characteristic:
● 900MHz/ 868MHz working mode
● Long range RC system, low latency and high precision
● 4 Optional RF Power (non-EU version)
● Telemetry mode （25mW） / non-telemetry mode （200mW / 500mW） (EU version)
● RF Power (Flex): 10mW / 100mW / 500mW / 1W (telemetry supported for all levels)
● Smart Port enabled and supports telemetry data transmission
Specifications:
- Compatibility: R9 series
- Voltage range Vin: 6.5V-13V
- External Power: 6.5V~13V
- Telemetry Interface: Smart Port
- Update Interface: Smart Port
- Modulations: PXX or CPPM (automatic detection)
FrSky R9 MX - Improved R9 Series ACCESS OTA Long Range Receivers
Overview
The R9 MX is the improved version of the previous R9 MM/Mini series long range receivers, equivalent in size and weight featuring a robust detachable Ipex1 antenna connector.
Specifications
- Frequency: 868 MHz / 915 MHz
- Size: 18*12*3.2mm
- Weight: 3.2g
- Number of channels: 4 PWM / 16 SBUS (CH16 RSSI outputs)
- Working Voltage: DC 3.5V~10V
- Operating current: <100mA at 5V.
- Compatibility: R9M Lite / R9M Lite Pro / R9M 2019 with ACCESS firmware
Characteristics
- ACCESS protocol and supports OTA functions
- 900MHz/868MHz long range with low latency
- Improved and durable design
- Supports S.Port / F.Port (configurable in OpenTX / FrOS menu)
- With reversed S.Port outputs
- Signal redundancy function
- Antenna with detachable Ipex1 connector

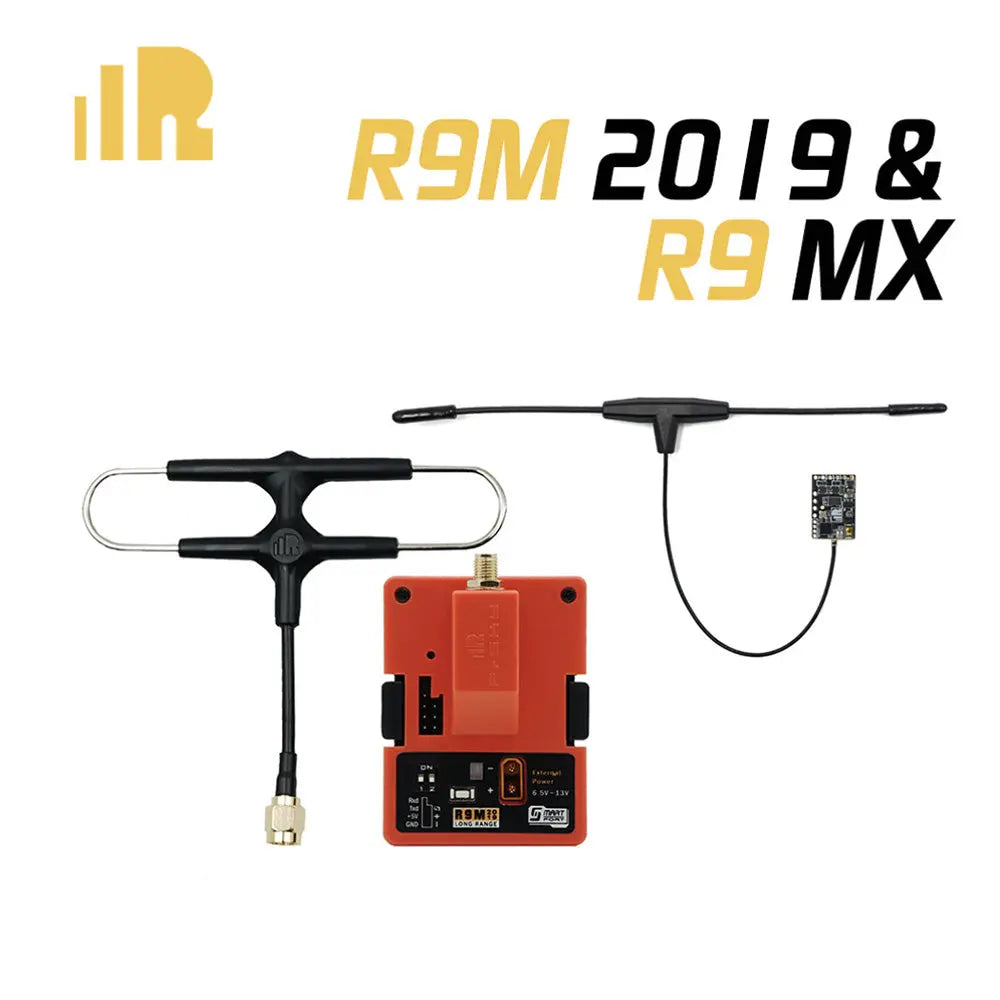

Package Included:
1 R9M 2019 module with Super 8 antenna mounted
1 x R9 MX OTA with Ipex4 T. antenna mounted
