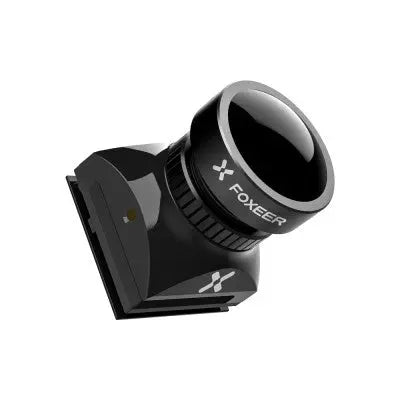

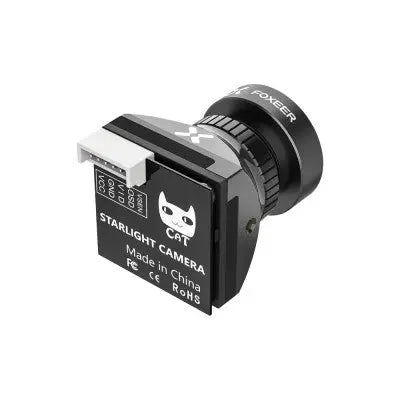

Foxeer Micro Cat 3 1200TVL
The Foxeer Micro Cat 3 StarLight FPV camera, with its large aperture night vision lens and LED enhancement, is a great option for night flying.
Explore the night world with the Foxeer Cat 3 MICRO FPV camera, featuring a host of advanced features that make it an exceptional choice for night flights. Equipped with a 1/3" Sony CMOS sensor, this camera offers a crisp 1200TVL resolution and incredible light sensitivity, going as low as 0.00001Lux thanks to Super Starlight technology. With less noise and low latency, the Foxeer Cat 3 MICRO offers top-notch low-light performance. It is smaller than the Mini Cat 3, making it perfect for compact drones. Its large aperture night vision lens captures detailed and bright images, while automatic white balance and DNR (digital noise reduction) further improve image quality. The Foxeer Cat 3 MICRO is highly customizable, with options to switch between 4:3 and 16:9 formats and between PAL and NTSC TV systems. It also supports OSD (On-Screen Display) and a remote control menu via Foxeer FC, offering an even more complete flight experience. With a wide range of supported languages, a voltage 4.6V to 20V input voltage and a working temperature of -10°C to 50°C, this camera is suitable for a variety of scenarios and weather conditions. Lightweight, compact and reliable, the Foxeer Cat 3 MICRO is the ideal choice for those seeking exceptional performance in night flights. Buy now and get ready to explore the night with clarity and precision.
Characteristics
- Less noise
- Low latency
- Smaller than Mini Cat 3
- 0.00001LUX Super Starlight
- Exclusive optimization for LED
- Switchable 4:3/16:9 and PAL/NTSC
- Wide aperture night vision lens
- Support OSD and remote control menu with Foxeer FC
Specifications
- Sensor type: 1/3" Sony CMOS sensor
- Scale: 4:3 (default) / 16:9 switchable
- TV System: PAL (default) / NTSC switchable
- Resolution: 1200TVL

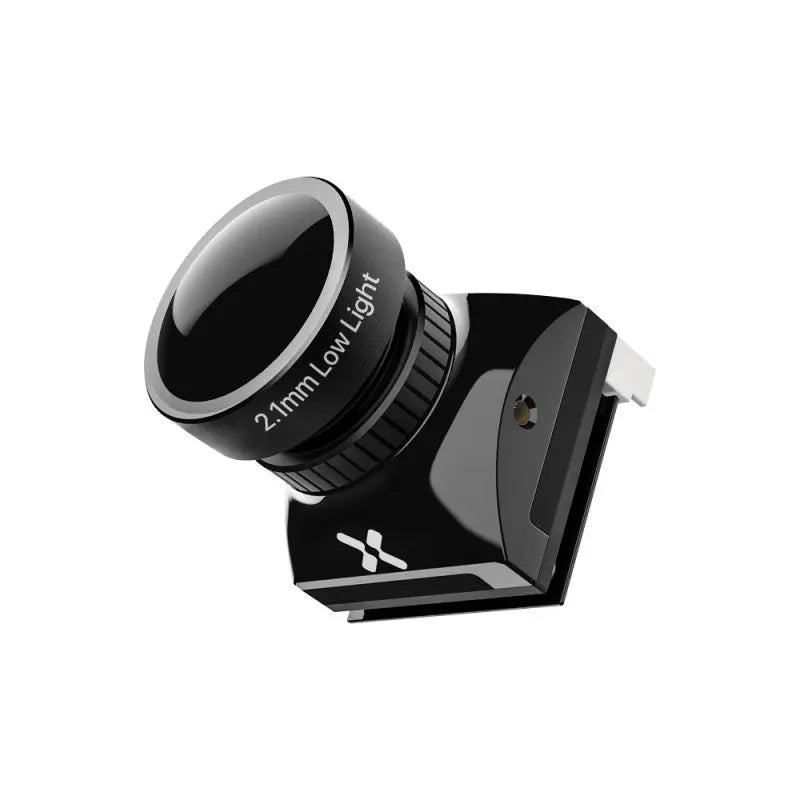

- Lens: 2.1mm M12 low light lens
- FOV: 4:3 FOV-H: 100° FOV-D: 125° 16:9 FOV-H: 100° FOV-D: 115°
- Shutter Speed: PAL 1/25 ~ 1/10000 sec; NTSC 1/30 ~ 1/10000 sec
- Video output: CVBS analog signal
- Minimum illumination: 0.00001Lux
- White balance: automatic
- DNR: 3DNR
- WDR: 100dB
- DAY / NIGHT: EST / Auto / Color / B&W
- Flight OSD: Voltage / Cam Title / Time
- Input voltage: 4.6V~20V
- Language: ENGLISH / 中文 / PYCCKNN / ESPANOL / ITALIANO / FRANCAIS / POLSKIM / PORTUGUES / 日本语 / EAAHNIKA
- Working Temperature: -10°~50°C RH90% MAX
- Working humidity: 20 ~ 80%
- Storage temperature: -20°~70°C
- Consumption: 95mA ± 15% @ DC12V
- Size: 19*19mm
- Weight: 10.7g (excluding cable)
Package Included
- 1x Foxeer Micro Cat 3 camera
- 1x hardware set
- 1x OSD card
- 1x 2-pin OSD cable
- 1x servo cable
Manual and Electrical Diagram
