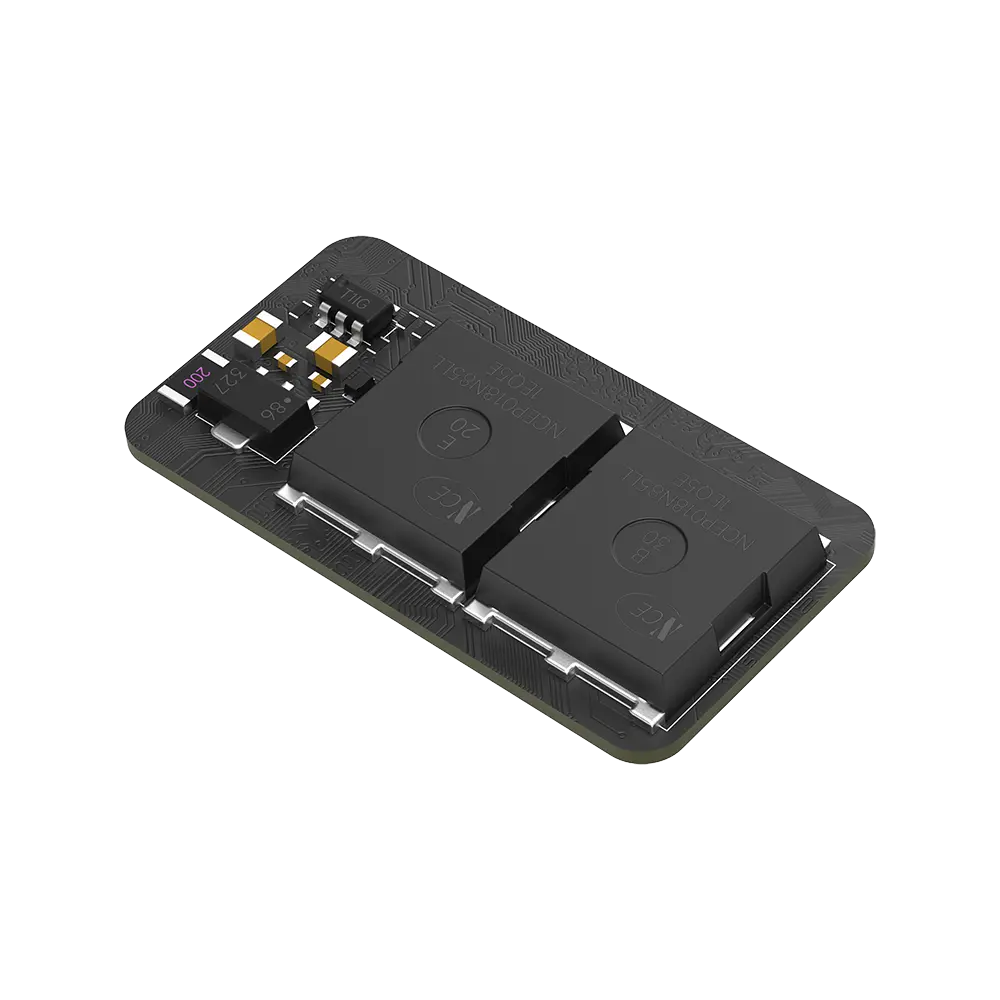

Connecting a battery can create a strong spark at the connector, caused by the high battery current flowing first into the low ESR capacitor and then filling the ESC's capacitance. We have added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes which can protect your electronic devices from damage.
Characteristics
- Version 1
Size: 18 x 16mm
Compatible:
-Nazgul XL5 V3 frame kit
-Nazgul DC5
-BOB57 frame kit
- Version 2
Size: 25 x 18mm
Compatible:
-Nazgul Evoque F4 frame kit
-Nazgul Evoque F5 V2 chassis kit
-Nazgul Evoque F6 V2 chassis kit
- Version 3
Size: 30 x 16mm
Compatible:
-Chimera7 Pro V2 / Chimera7 ECO frame kit
-Chimera9 ECO frame kit
-XL10 V6 /CX10 ECO frame kit
Specifications
Size: 16*18mm/25*18mm
Input Voltage: 3-6S (9-26V)
Continuous overcurrent: 30A for 60 minutes
Weight: 2.4g/2.6g
Size: 30 x 16mm
Input voltage: 4-6S (14-26V)
Continuous overcurrent: 150A
Instantaneous current: 160A
Size: 30 x 16mm
Weight: 4.5g
Package Included
- 1x spark filter
- 1x set of cables
- 1x XT60E-M plug (18*16 mm)/ XT60E-M plug (25*18 mm)/ XT60EW-M plug (30 * 16 mm)
