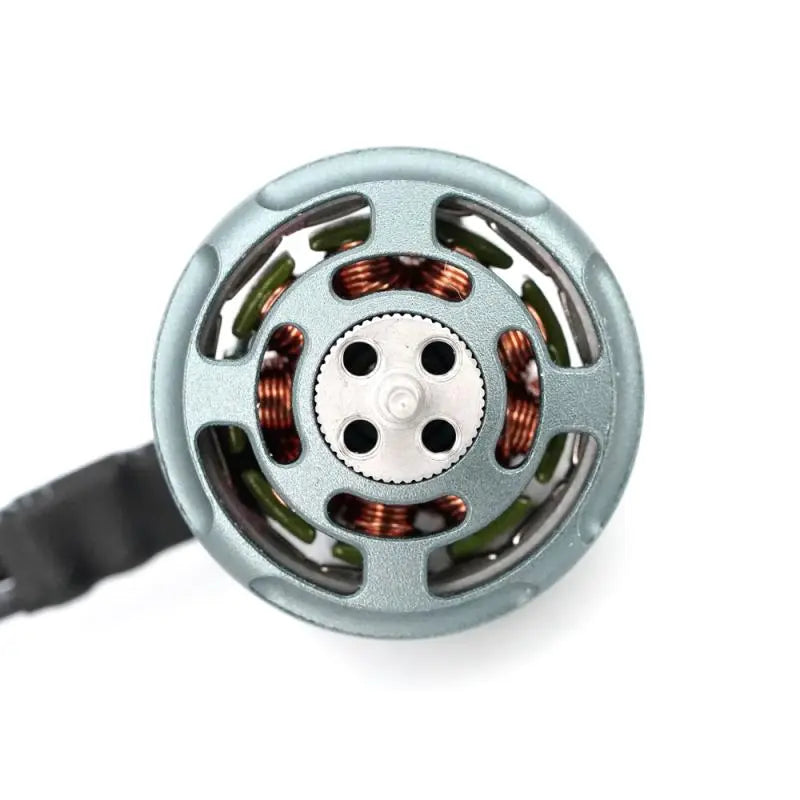

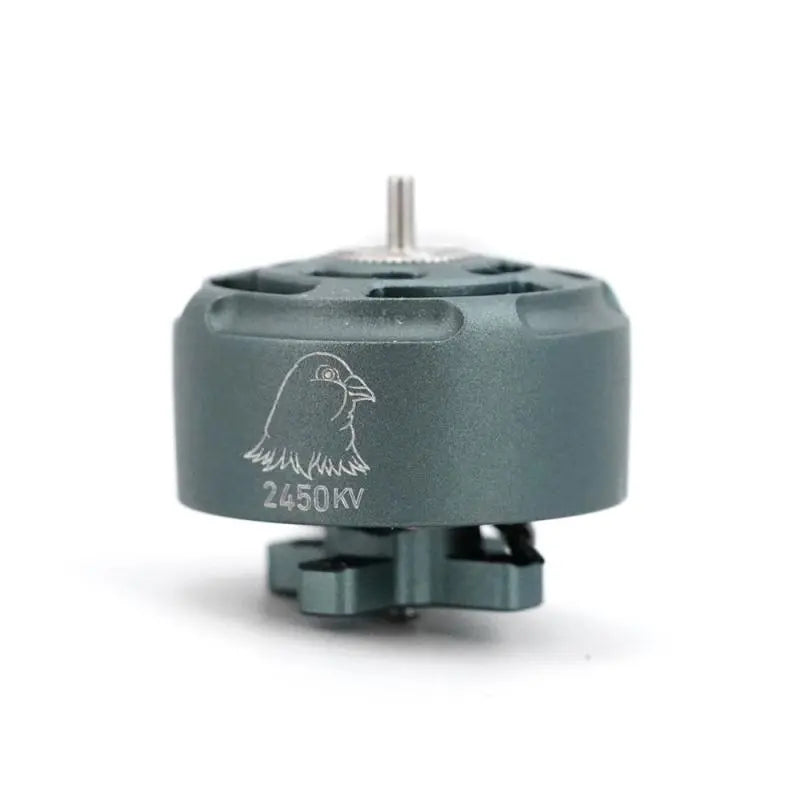

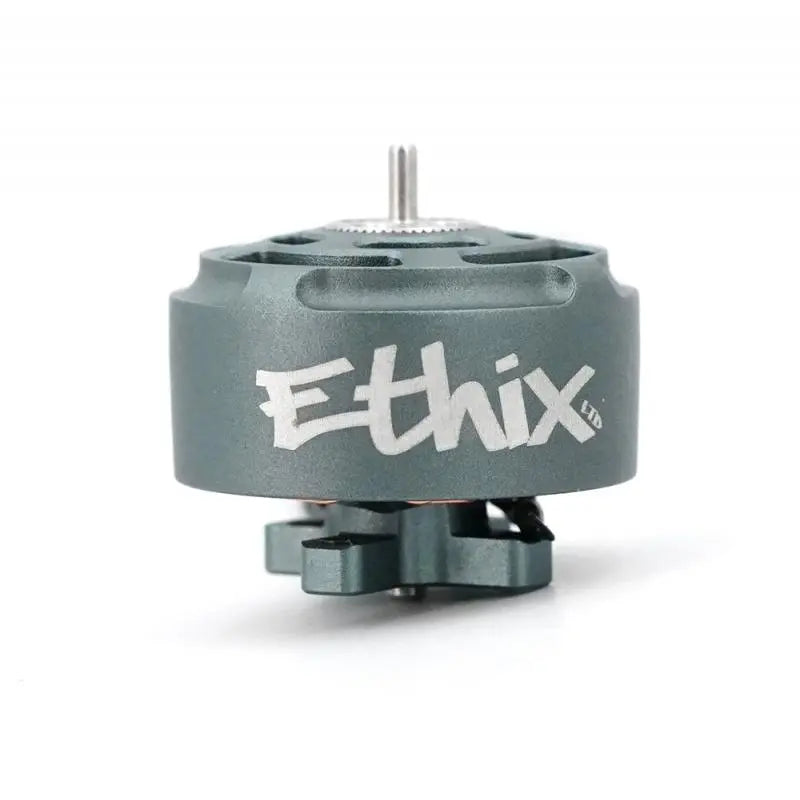

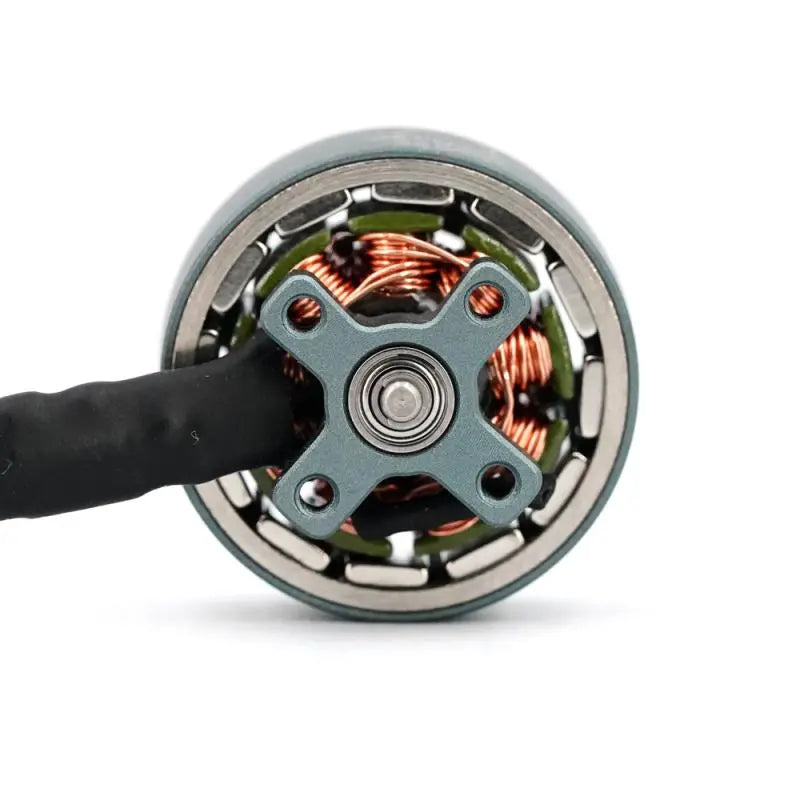

ETHIX FSP 1607 2450KV T MOUNT
FSP "full stuffed pigeon" engines were designed with carrying heavier payloads on your Cinerat with new 4" and 5" boom options and other smaller frames that can fit lightweight 4" to 5" propellers. It is also a good option for the sub-250g class as well. 6s capacity and are available with both T-mount and 5mm shaft.
Characteristics
FSP "full stuffed pigeon" engines were designed with carrying heavier payloads in mind on your Cinerat with new 4" and 5" boom options and other smaller frames that can install lightweight 4" to 5" propellers. It is also a good option for the sub-250g class as well. 6s capacity and are available with both T-mount and 5mm shaft.
Specifications
- Stator size (diameter): 16mmφ16mm
- Kv: 2450
- N52SH Magnets: Curved
- Windings: 15 turns DLRK
- Shaft length (mm): T-shank
- Shaft Diameter (mm): 1.5mm
- Shaft Material: Steel
- Bearing: 4*2*2.5
- Weight (with threads) (g): 20 g
- Cells (Lipo): 6S
- Maximum current (A): 15A
- Maximum burst current (A): 25A
- Internal resistance (Rm): 0.27 mΩ
- Wire Specifications (AWG): AWG 24#
- Base mounting pattern: 12x12mm
- Base mounting thread: M2 thread
- Overall motor dimensions: 23mmx17.5mm

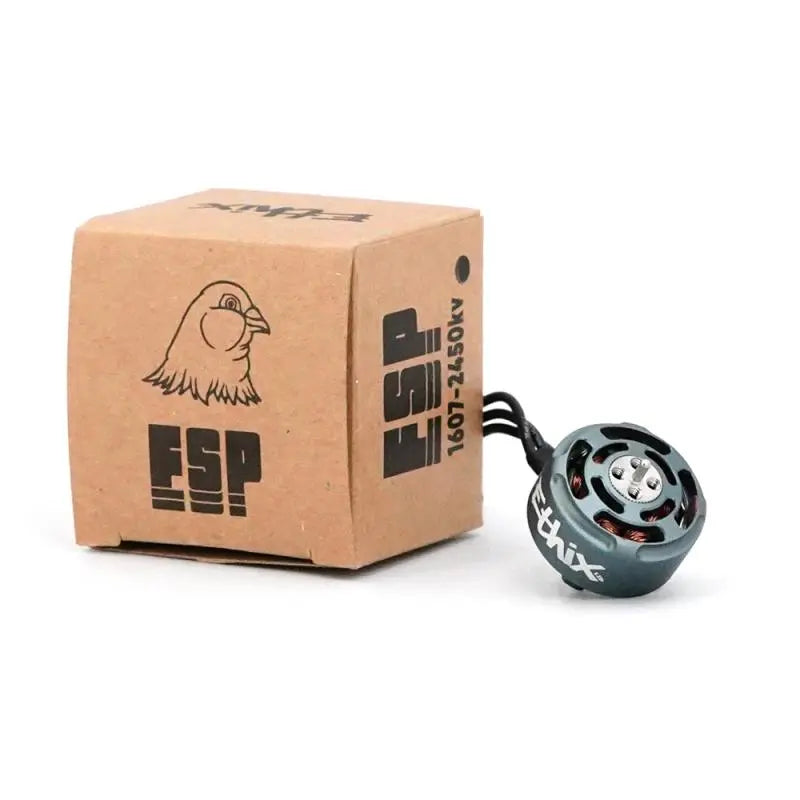

Package Included
- 1x ETHIX FSP 1607 2450KV T MOUNT motor
- 1x Mounting set
