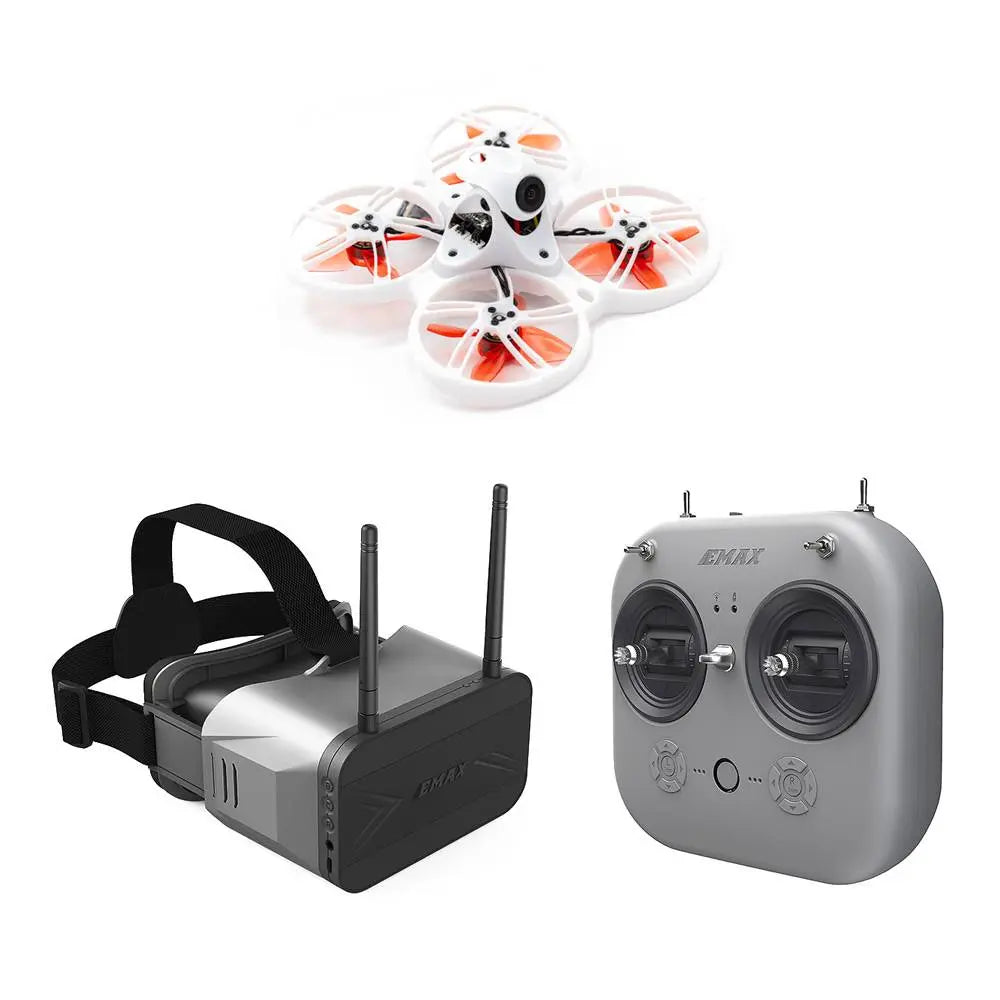

EMAX TinyHawk III RTF !!
Thanks to collaboration with the experts at RunCam, EMAX was able to upgrade their package to TinyHawk III ! TinyHawk III features the RunCam Nano 4 camera, known for its higher resolution, true-to-life colors, low-light night vision, and ISP. Modifying the video transmitter with more filters and power has allowed the Tinyhawk III to have cleaner video than ever before.
This RTF package gives you everything you need to start flying in minutes. Everything is included: Transporter 2 glasses, E8 radio transmitter and, of course, the TinyHawk III quadcopter! This package is the perfect solution for anyone wanting to learn the basics of FPV flying, whether beginners or professionals!
The included receiver is compatible with SPI and FrSky D8 modes.
VIDEO: EMAX - Introducing Tinyhawk III
Characteristics
- EMAX Transporter 2 FPV goggles reinvented with detachable screen and integrated DVR
- The flight controller has an MCU (STM32F411CEU6) with an MPU6000 gyroscope
- Easy repairability with centralized mounts and improved engine pins
- The EMAX Transporter 2 glasses have a built-in 3000 mAh lithium battery
- TinyHawk III Receiver with 8 Channels - Compatible with SPI / FrSKy D8
- Smart Audio function to change VTX channels via the transmitter
- EMAX E8 radio transmitter with high quality gimbal
- 1S high voltage (HV) 450mah LiPo battery included
- Beginner, intermediate and advanced flight modes
- Drastically redesigned frame with increased durability
- The motors and electronics are highly protected
- Elegant carrying case for easy transportation
- TH0802 II 15000KV quick motor exchange
- New 4-blade AVIA TH propellers
- Betaflight VTX OSD settings
- RunCam Nano 4 camera
- Tiny Hawk III VTX
TINYHAWK III MAIN CONTROL BOARD - The TinyHawk III main control board contains four 5A electrical regulators and an 8-channel receiver. The receiver is integrated into the main control board and set via betaflight.
TINYHAWK III FLIGHT CONTROLLER - This flight controller has an MCU (STM32F411CEU6) with an MPU6000 gyroscope. The TinyHawk III flight controller is pre-programmed and properly tuned for optimal flight. For a complete tuning and configuration settings file (CLI dump file), visit https://emaxusa.com/ for the CLI dump file.
Specifications
EMAX TINYHAWK III RTF
- VTX: 200-100-25mW 37CH (adjustable frequency)
- Receiver: EMAX Tiny Receiver (SPI/Frsky_D8)
- Maximum size: L*W*H=105x105x45mm
- Camera: RunCam Nano 4 camera
- FC: F4 (STM32F411 firmware)
- Weight (without battery): 32 g
- Propeller: Propeller Avia TH
- Motor: TH0802II 15000KV
- Battery: 1S HV 450mAh
- Support: SmartAudio
- ESC: ESC 4in1 /5A
- Wheelbase: 76 mm
- Battery Connector: PH2.0
EMAX E8 RADIO TRANSMITTER
- Charging system: Built-in 5V-1A USB lithium ion linear battery charging system
- External interface: Micro USB, 3.5mm audio interface (wired coach interface)
- Frequency 2.4 GHz (2400 MHz-2483.5 MHz)
- Maximum size: L*W*H=150x140x45mm
- Battery: 18650 lithium ion battery
- Weight (without battery): 260 g
- Number of channels: 8CH
- Working voltage: 4.2V-3.3V
- Output: 22 dBm
EMAX TRANSPORTER 2 GLASSES
- Charging system: Built-in 5V-1A USB lithium ion linear battery charging system
- Maximum size: (Without antenna - Folded) 155x100x90mm
- Frequency: 5.8GHz (5658MHz-5945MHz)
- Video: VGA/D1/HD (off/3 min/5 min/10 min)
- DVR: TF card 32G (max), MJPEG, AVI
- Battery: 1300mAh lithium ion battery
- Screen resolution: 480X800
- Weight (with battery): 398 g
- Working voltage: 4.2V-3.7V
- Screen size: 4.3 inches
RUNCAM NANO 4 CAMERA
- Dimensions: L14mm*W14mm*H14mm
- Current: 160mA@5V 180mA@3.3V
- min. Illumination: 0.01Lux@1.2F
- Electronic shutter speed: automatic
- Automatic Gain Control (AGC): Auto
- Horizontal resolution: 800TVL
- Lens: 2.1mm (M8) FOV 155°
- Image sensor: 1/3" CMOS
- Model: RunCam Nano 4
- Housing Material: ABS
- Signal system: NTSC
- DC Power: 3.3-5.5V
- Signal to noise ratio: >50dB
- Net Weight: 2.9g
- Day/Night: Color
- D-WDR: Automatic
- Battery Connector: PH2.0
Recommended parts
- EMAX LiPo 1S 450mAh 3.8V 80C
- Gaoneng GNB 660mAh 3.8V 1S 90C/180C HV 4.35V PH2.0 plug
-
Gaoneng GNB 660mAh 3.8V 1S 90C/180C HV 4.35V PH2.0 plug with wire
Manuals
- EMAX TinyHawk III BNF quadcopter
- EMAX TinyHawk III RTF Instructions
- EMAX Transporter 2 FPV goggles
- EMAX E8 radio transmitter
Package Included
- 1 EMAX TinyHawk III BNF quadcopter
- 1x Avia TH 4-Blade Propellers (Set of 4)
- 1x EMAX Transporter 2 FPV goggles
- 1 EMAX E8 radio transmitter
- 1 LiPo 1S HV 450mAh battery
- 1 x 4 USB Port Charger
- 1 x Phillips screwdriver
- 1 x Carrying Case
- 1 x USB Cable
