ELRS RadioMaster Ranger Nano 2.4GHZ

€49,99 EUR

×

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


ELRS RadioMaster Ranger Nano 2.4GHZ

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Vendor: RadioMaster
SKU:
Availability: In Stock Pre order Out of stock
Description

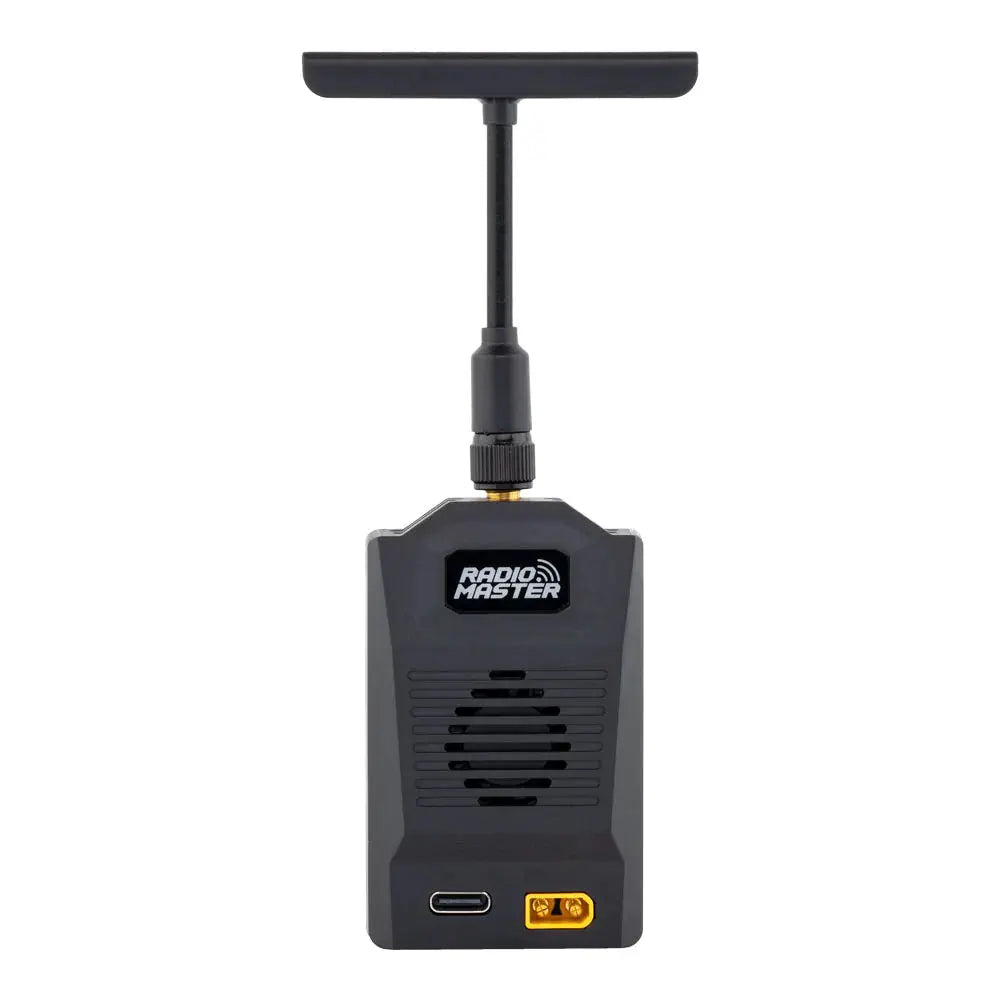

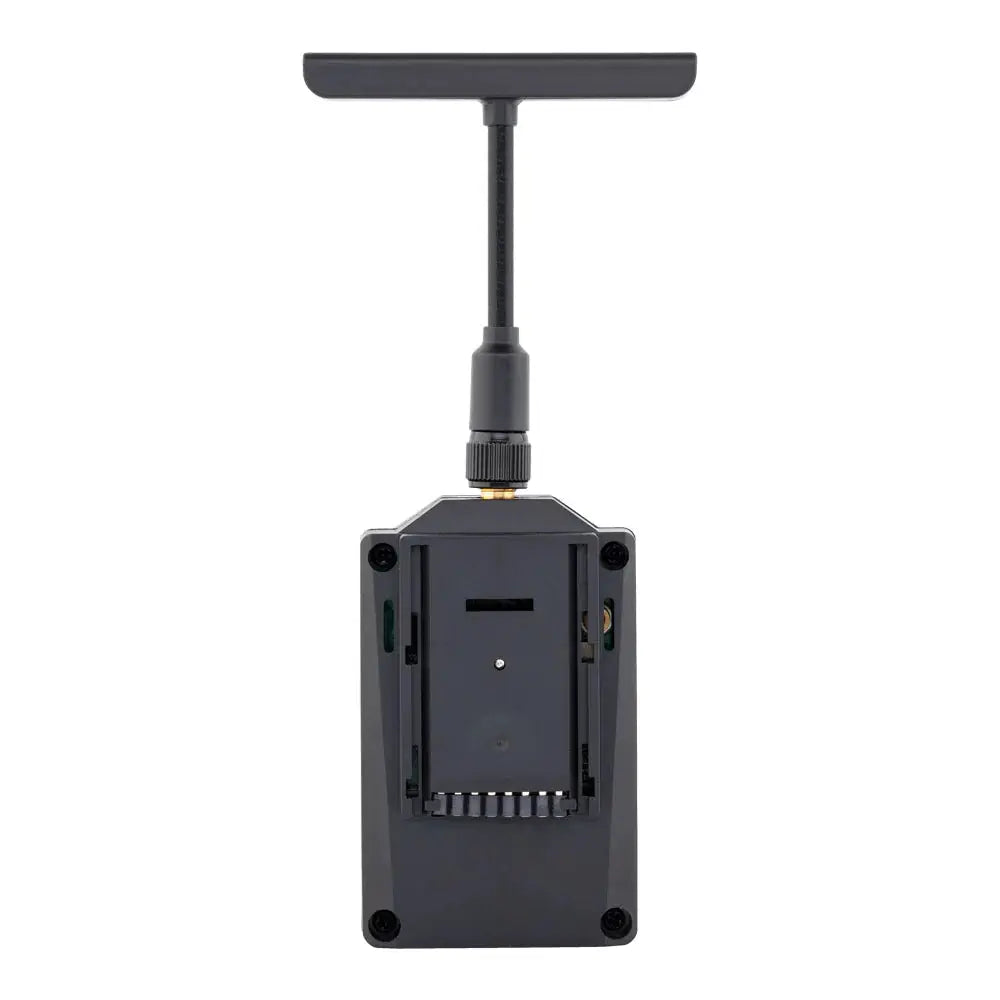

ELRS RadioMaster Ranger Nano 2.4GHZ Combo

Want to experience the efficiency, long range and low latency of the ELRS protocol without buying a new radio? RadioMaster has you covered!

With up to 1W output, F-1000Hz refresh rates, and a highly efficient cooling system, the Ranger Micro 2.4GHz ELRS module represents the cutting edge of ELRS technology. Connect the module to a compatible radio (RadioMasterZorro and more) to enjoy everything ELRS has to offer.

The included T-shaped antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The ELRS Ranger Nano 2.4GHz module fits Nano module bays, for JR/Micro style connectors, please consider Ranger Micro Modules. ELRS Ranger Nano 2.4GHZ module

Characteristics

  • High efficiency cooling system
  • Wi-Fi and Bluetooth support
  • Packet rate up to F-1000Hz
  • Up to 1 Watt of output power
  • T-Antenna included
  • With Nano connector, support Zorro radio

Specifications

  • Article: Nano Ranger Module
  • Regulatory domain: ISM2400
  • MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
  • RF Chip: SX1281IMLTRT
  • Frequency range: 2400 MHz - 2480 MHz
  • Max Packet Rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (adjustable via LUA)
  • Wi-Fi Support: Yes
  • Bluetooth Support: Yes

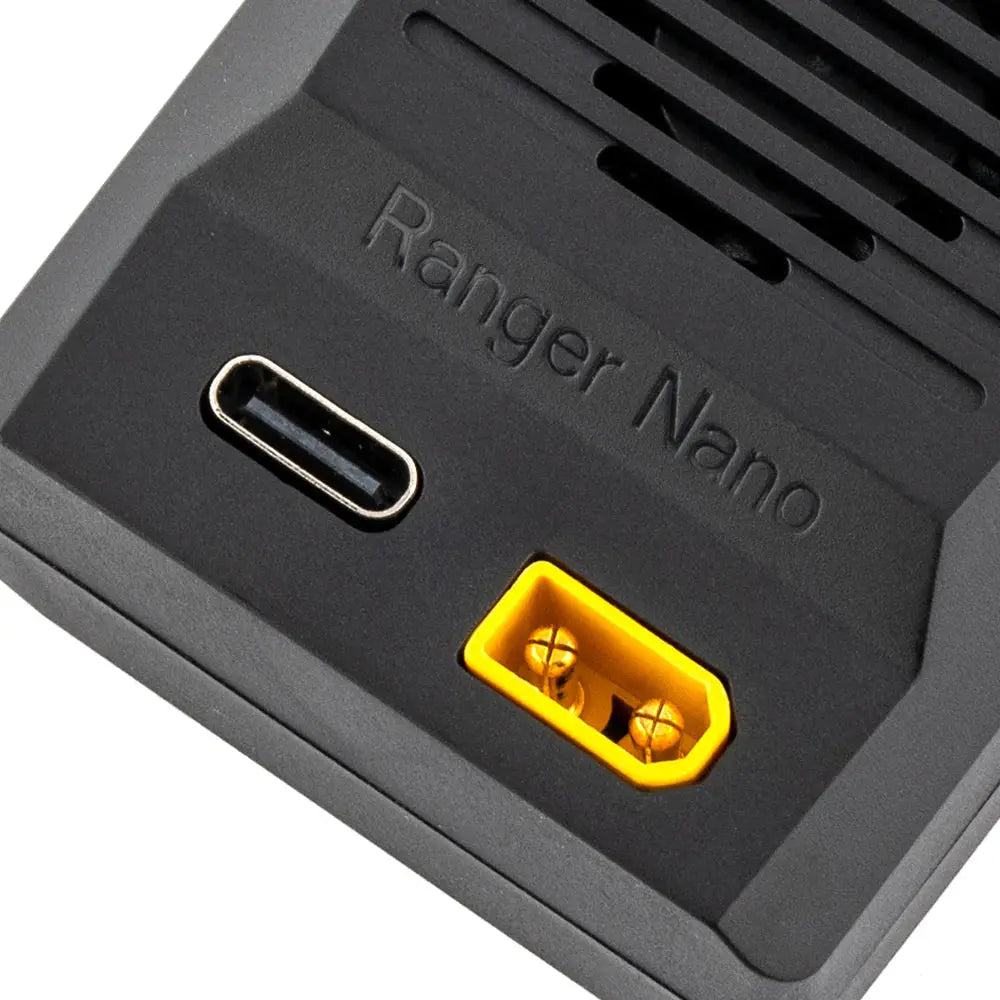

  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)
  • Size: 136*42*26mm(with T antenna)/74*42*26mm(without antenna)

ELRS Ranger Nano 2.4GHZ module

ELRS Ranger Nano 2.4GHZ moduleELRS Ranger Nano 2.4GHZ moduleELRS Ranger Nano 2.4GHZ moduleELRS Ranger Nano 2.4GHZ module

Cut

ELRS Ranger Nano 2.4GHZ module

radiomaster elrs 2.4ghz ranger module

Package Included

  • 1 Nano Ranger module
  • 1 x 2.4GHz T-Antenna

*NOTE: Receivers with attached antennas are sold separately.
