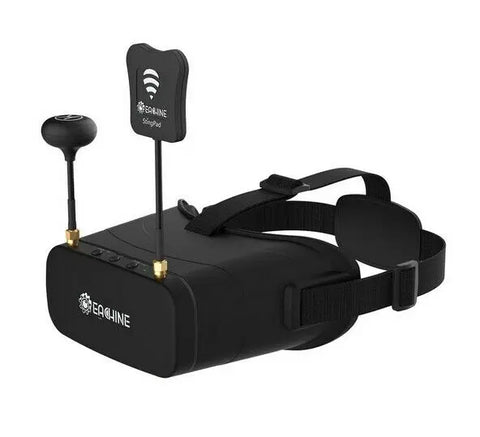

ev800dm FPV HD 3 inch 900*600 Goggles with DVR
Eachine EV800DM
Characteristics
Super HD DVR resolution up to 720*576px
Diversity RaceBand 40ch automatic search
Two systems (separate chipsets Screen/record duo core) ensure no delay in display and no frame loss when recording (use C10 super speed card to ensure full frame recording)
Work with player-OSD, no blocking on important OSD information in flight;
Adjustable focal length design; space for glasses
HD high brightness 3 inch LCD specially tuned for FPV racing;
Diversity function, 5.8GHz 40CH excellent receiving module, with RaceRand;
Advanced auto search function and operating frequency show on the screen;
Built-in 3.8V 2000mAh battery, each full charge offers 2.2 hours working time;
Wide charging voltage range 5-180V;
Accept 2S or 3S batteries as power source, to extend working time;
Nice ergonomic design and fits different faces;
Super-wide viewing angle up to 82 degrees;
92% clear lens adopted, no distortion, no blur on the edge of the screen;
Lightweight 320g with 2.2h 2000mAh battery, RTF for any scale racing game;
3 Inch 900*600px HD high brightness LCD
Description
Brand: EACHINE
Item Name: EV800DM
| I wait | Size: 150*170*80mm Weight: 320 g without antenna Belt: Three-way adjustable strap |
| specification | Build in DVR records up to 720*576px full frame rate video, no lost frames (C10 card required) Play in MENU Requires a C10 card to record full frame rate |
| Diversity | -90dB Super sensitivity in 2 pieces RX5808 PRO modules Excellent performance when two type antennas (Linear and Omni) are used |
| Screen | Screen size: 3.0 inches Screen resolution: 900*600 (no blur after lens enlargement) Screen brightness: 600cd/m2 with special high brightness LED backlight for outdoor FPV Ratio: 4:3 Viewing Angle: 140/120 degrees (horizontal/vertical) |
| lens | 3x video boost to capture intense feel-in video; The transparent rate of 92% distorts if light; |
| varifocal | 20mm focal length adjustable; Multiple stop point design for user's individual vertical adjustment; For multiple users with different view |
| Fit the glasses | Size for wearing with glasses; Glasses size; 140mm*40mm; The focal length must be reset when wearing glasses |
| Drums | Built-in 3.8V/2000mAh battery; Each battery circle offers about 2.2 hours of working time; Wide charging voltage range from 5 to 18V, typical charging with 5V/2A Charger: 5V, 2A, DC 2.5mm 2S(7.4V) / 3S(11.1V) as back up power to have a long working time. |
Frequencies (5.8GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865MHZ | 5845MHZ | 5825MHZ | 5805MHZ | 5785MHZ | 5765MHZ | 5745MHZ | 5725MHZ |
| B or FR2 | 5733MHZ | 5752MHZ | 5771MHZ | 5790MHZ | 5809MHZ | 5828MHZ | 5847MHZ | 5866MHZ |
| C or FR3 | 5705MHZ | 5685MHZ | 5665MHZ | 5645MHZ | 5885MHZ | 5905MHZ | 5925MHZ | 5945MHZ |
| D or FR4 | 5740MHZ | 5760MHZ | 5780MHZ | 5800MHZ | 5820MHZ | 5840MHZ | 5860MHZ | 5880MHZ |
| R or FR5 | 5658MHZ | 5695MHZ | 5732MHZ | 5769MHZ | 5806MHZ | 5843MHZ | 5880MHZ | 5917MHZ |
Recommended Parts
FPV VTX: 5.8Ghz VTX Click here
FPV camera: Camera Click here
Small camera: Click here
Package Included
1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Glasses with DVR
1 x Clover Antenna
1 x Antenna panel
1 battery charger
1 x USB Charging Cable
1 x AV In/Out AV Cable
1 x User Manual
