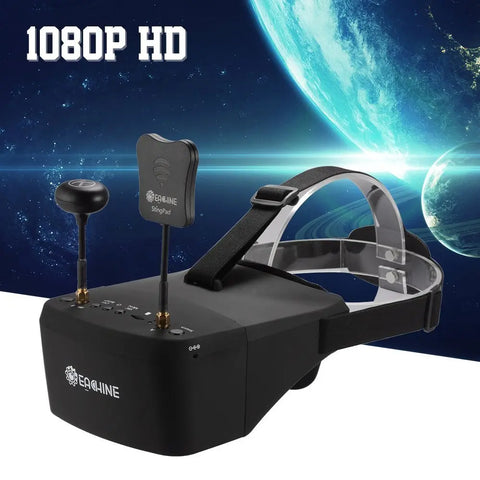

Eachine EV800D
The Eachine EV800D is a versatile and affordable FPV headset that is perfect for beginners and experienced pilots alike. This model improves on the previous generation, offering advanced features such as a 40-channel diversity receiver and a built-in DVR to record your high-quality FPV video feed with zero latency.
The modular design allows you to easily convert the headset into a standalone monitor, ideal for different flight needs. The EV800D features a 800x480 HD LCD screen with 600cd/m2 brightness, ensuring a clear and sharp image even outdoors. The high-quality lens provides 3x distortion-free magnification, ensuring an immersive flight experience.
Thanks to the diversity receiver and the included antennas, you will enjoy excellent reception, minimizing interference and improving signal quality. In addition, the integrated DVR allows you to capture every moment of your flight without losing frames, as long as you use a microSD card of class 10 or higher.
The ergonomic design and adjustable headband ensure optimal comfort during prolonged use, despite the slight imbalance due to the battery position. For those who want a versatile, high-quality FPV experience at an affordable price, the EV800D is an excellent choice.
Specifications
| I wait |
Size: 180*145*82mm Weight: 362 g without antenna Belt: Three-way adjustable belt |
|
specification |
Build in DVR Record up to 720*576px video with full frame rate, no dropped frames (C10 card required) Playback in MENU Requires C10 card to record full frame rate |
|
Diversity |
Super sensitivity in PRO 2X RX5808 modules Outstanding performance when using two type antennas (linear and Omni) |
|
Display |
Screen size: 5.0 inches Screen Resolution: 800*480 (No blur after zooming in by lens) Screen Brightness: 600cd/m2 with special high brightness LED backlight for outdoor FPV Viewing angle: 140/120 degrees (horizontal/vertical) |
|
lens |
3x video enhancement to capture intense feel-in-there video; The 92% transparent rate distorts if light; |
|
Drums |
Built-in 7.4V/1200mAh battery; Each battery circle offers approximately 2 hours of work; Charging voltage range 11-20V, typical charging voltage 12V 2S(7.4V) /3S(11.1V) as backup power to have long working time. |
Frequencies (5.8 GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865MHz | 5845MHz | 5825MHz | 5805MHz | 5785 MHz | 5765 MHz | 5745MHz | 5725 MHz |
| B or FR2 | 5733 MHz | 5752 MHz | 5771 MHz | 5790 MHz | 5809MHz | 5828MHz | 5847MHz | 5866MHz |
| C or FR3 | 5705 MHz | 5685 MHz | 5665 MHz | 5645MHz | 5885MHz | 5905MHz | 5925MHz | 5945 MHz |
| D or FR4 | 5740MHz | 5760 MHz | 5780 MHz | 5800MHz | 5820MHz | 5840MHz | 5860 MHz | 5880MHz |
| R or FR5 | 5658 MHz | 5695 MHz | 5732MHz | 5769 MHz | 5806 MHz | 5843 MHz | 5880MHz | 5917 MHz |
Characteristics
Built-in with Super HD DVR recording up to 720*576px resolution
Diversity RaceBand 40ch Auto-Searching
Two systems (separated display/recording Duo core chipset) ensure no delay in display and no dropped frame in recording (Please use C10 super speed card to ensure full frame recording)
OSD pilot compatibility, no blocking on important flying OSD information;
Detachable design, 5 inch screen can be used as a small monitor on the remote controller or with tripod;
5 inch high brightness HD LCD specially designed for FPV racing;
Diversity function, 40-channel super sensitive 5.8GHz receiver module, with RaceRand;
Advanced auto search function and display working frequency on screen;
Built-in 7.4V 1200mAh battery, each full charge provides 2 hours working time;
Wide charging voltage range 11-20V;
Accept 2S or 3S batteries as backup power source, to extend working time;
Beautiful ergonomic design and fit different faces;
Super wide visible angle up to 82 degrees;
Adopted 92% transparent lens, no distortion, no blurring on the edge of the screen;
Lightweight 375g with 3.5 hours 2000mAh battery, RTF for any scale racing game; Package
5 inch high brightness 800*480px HD LCD
Package Included
-
1x Eachine EV800D
-
1x Charger
-
1x 5.8G half-plane antenna with RP-SMA connector
-
1x 5.8G RHCP Quadruple Leaf Antenna with RP-SMA Connector
-
1x AVin cable
- 1x DCpower cabler for 3S balance cable
-
1x Fresnel Lens Clarifying Kit
- 1x Instruction Manual (English)
