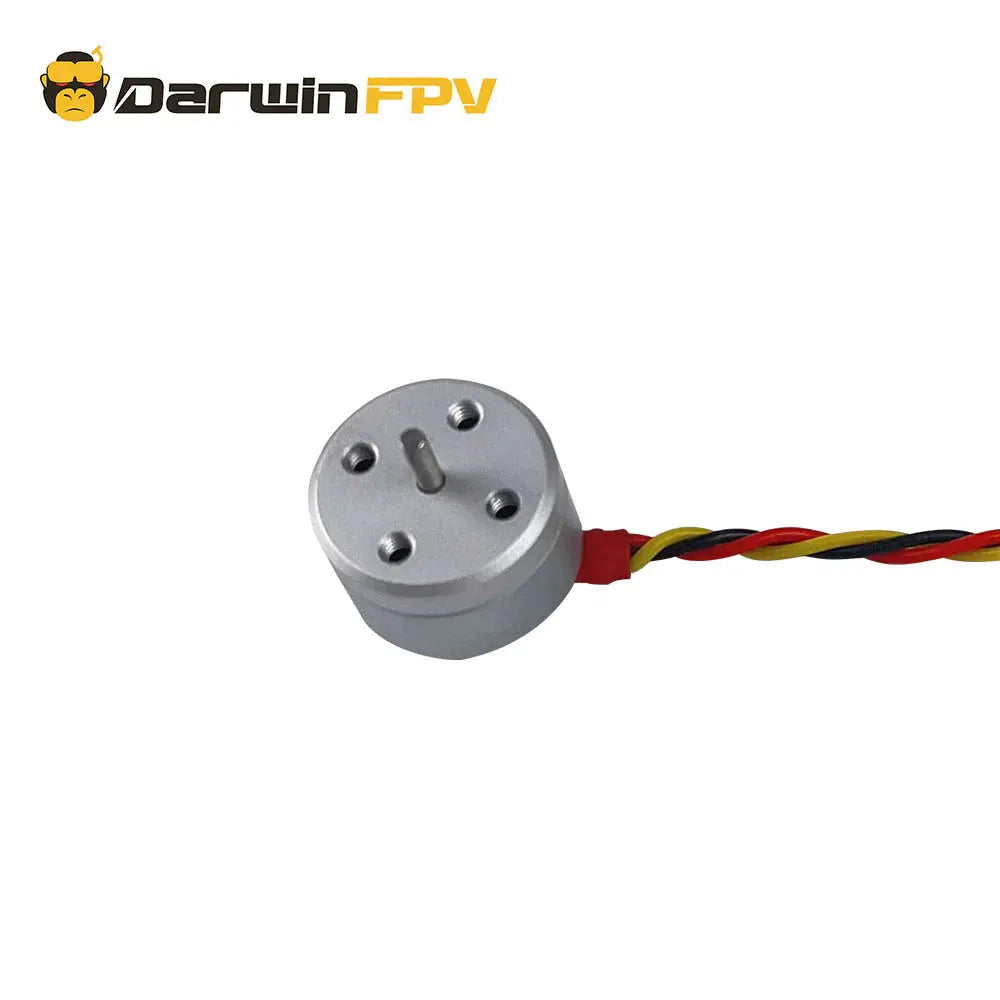

DarwinFPV 1104 4300KV Brushless Motor
The Darwin 1104 motor, originally used in the DOBBY pocket drone owned by the now defunct drone giant Zero Degree Intelligent Control, boasts manufacturing standards on par with industry leader DJI. However, due to unforeseen circumstances, the company faced bankruptcy, resulting in a surplus of these high-quality motors. As a result, we are offering them at a discounted price.
Through extensive testing, we can confidently attest to the outstanding performance of this motor. It runs smoothly and efficiently, delivering impressive thrust. Its features make it especially suitable for ultralight FPV drones such as toothpick FPV drones.
Don't let its affordable price put you off. There is no compromise in performance compared to regular motors. Keep in mind that these motors are available while supplies last, so take the opportunity to make a smart investment! By buying now, you will not only enjoy great savings, but you will also position yourself to maximize your returns.
Characteristics
With a manufacturing process of the highest standards, this product boasts exceptional dynamic balancing performance and exceptional product consistency. Each motor is meticulously crafted to ensure optimum performance and reliability.
Designed specifically for aerial photography applications, these motors feature an optimized magnetic circuit that improves efficiency and reduces power consumption. You can count on these motors to deliver powerful, reliable performance while saving energy.
Package Included
- 1x 104-4300KV motor
- 5x M1.6 Cross Round Head Screws
- 1x sticker
Technical specifications
| Model | Darwin 114 4300KV Engine | |||
| KV | 4300KV | |||
| Stator size | Φ11mm × 4mm | |||
| Dimensions | Φ14.3mm × 17.6mm | |||
| Rated voltage | 12V（LiPo 3S） | |||
| Current inactive | 0.5A/12V | |||
| Maximum current | 5.2A | |||
| Maximum power | 62.4W | |||
| Structure | 9N12P | |||
| Propeller shaft | Φ1.5mm × 5mm | |||
| Interphase resistance | 470mΩ | |||
| Bearing Specifications | Φ4 × Φ1.5 × 2 mm | |||
| Rotor Specifications | Divided | |||
| Magnet | N45H | |||
| Wrapping | Multi-strand copper winding | |||
| Cable size | 28AWG×70mm | |||
| Mounting holes | 8.5mm*8.5mm（M1.4） | |||
| Weight (including wire) | 5.9g±0.2g | |||
| Recommended battery | LiPo 2-3S | |||
| Applicable models | 2-3 screaming FPV drones | |||
