Darwin240 Johnny 5"

€229,99 EUR

Receiver: PNP

PNP
Frsky R-XSR
ELRS 2.4 GH
TBS Nano RX
×

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.


Darwin240 Johnny 5"

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓ Valid
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

Pay online with PayPal, credit, debit and prepaid cards securely, even on delivery!

visamastermaestropaypalapple paygoogle payshopify pay
Vendor: DarwinFPV
SKU:
Availability: In Stock Pre order Out of stock
["LiPo 4S/14.8V"]
F4
Description

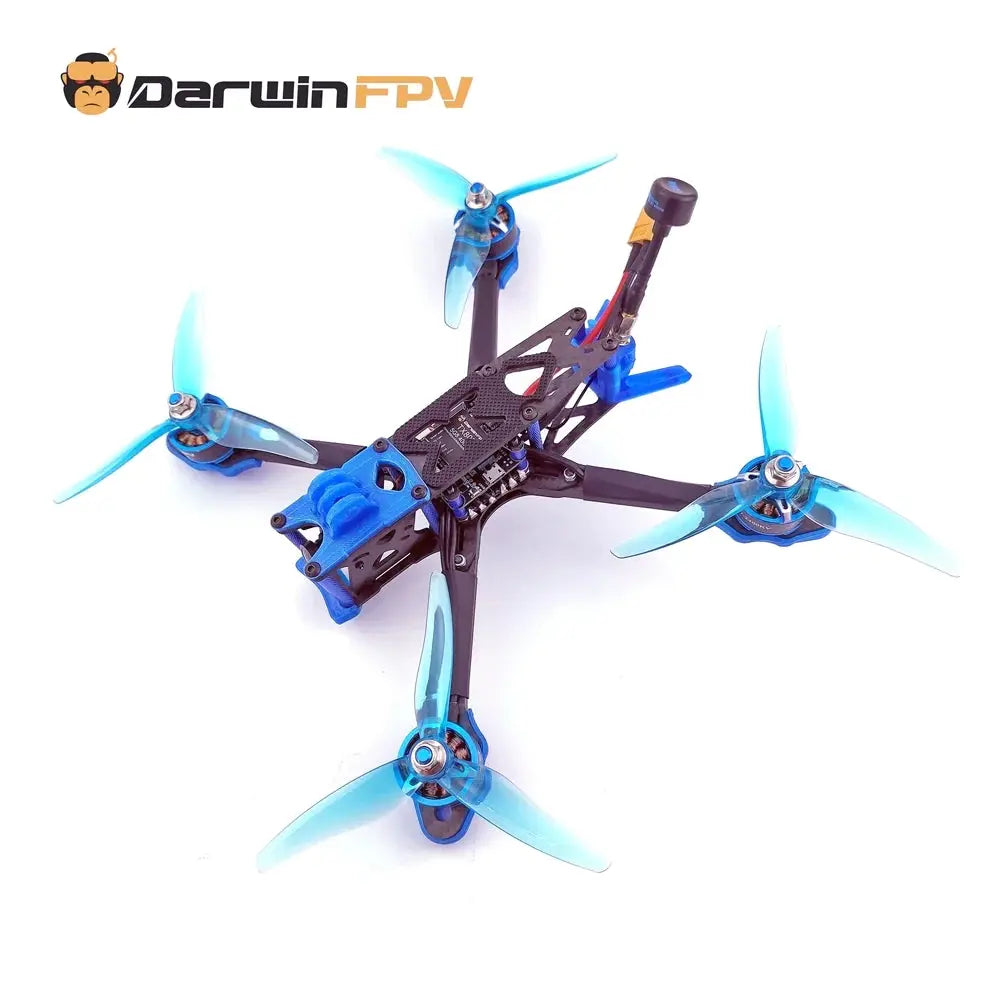

DarwinFPV-Darwin240 Johnny 5"

Wheelbase: 240 mm

Frame arm thickness: 5.5mm

Frame kit material: 3K carbon fiber

DrawinFPV 2207- 2400 KV brushless motor

Motor KV: 2400KV

Idle Current (Io/10V): 0.81A

Lipo cell: 3-4S

Weight: 36.4g

Maximum continuous current: 32A

Maximum continuous power: 765W

Configuration: 12N/14P

Propeller adapter shaft: M5

Bolt hole spacing: 16mm

Bolt thread: M3

4 IN 1 50 A BLHeli _ S ESC

F4-50A battery

Continuous current: 50A

Peak Current: 60A (10S)

Lithium battery section number: 2-6S

BEC: 5V2A

ESC Weight: 10.8g

Firmware: BL_S

Support maximum throttle signal: DSHOT600

Mounting hole: M3 30.5*30.5mm

F4 flight controller

F4 Flight control

Lithium battery section number: 3-6S

BEC: 10V 1A, 4.5V, 3.3V

MCU: STM32F405

Gyroscope: MPU6000

OSD: AT7456E

Firmware: MATEKF405

Weight: 7.2g

Mounting hole: M3 30.5*30.5mm

Support barometer, black box

Bluetooth

5.8G 40CH 800mW VTX TX805P

Frequency: 5.8G Channels: 40CH

Input voltage: 7V~24V

5V camera power supply: 120mA(MAX)----25mW@12V 5V

Camera power: 200mA (MAX) ---- 200mW @ 12V 5V

Camera power: 300mA (MAX) ----600mW @ 12V 5V

camera power: 350 mA (MAX) ---- 800 mW @ 12 V Extra

features: Intelligent audio

Power: 5V output for camera

Output Power: 25mW/200mW/600mW/800mW

switchable antenna connector: MMCX

Cable Connector: Solder Pads

Weight: 8 g (excluding antenna)

Battery connector: XT60

Recommended parts

Package Included

  • Darwin240 Johnny 5" quadcopter

PLEASE NOTE: TO ENSURE THE MAXIMUM QUALITY, EACH MODEL WILL BE INSPECTED BY OUR STAFF BEFORE BEING SHIPPED.

Shipping and Payments

SHIPPING

Italy

Express Shipping (1-4 working days)

• Free for orders over €150.00

• €9.99 for orders under €150.00

Europe (European Union)

International Express Shipping (2-6 business days)

• €29.99 for all orders

READ MORE >>

PAYMENT METHODS

On Drone24hours.com you can use the following payment methods:

  • Paypal
  • Visa
  • Visa Electron
  • CartaSi
  • Postepay
  • MasterCard
  • American Express
  • Paypal prepaid cards linked to the Visa or Mastercard circuit
  • Cash on delivery
Returns and Refunds

Return Policy

You can return products that you are not satisfied with within 14 days of receiving your order. To be eligible for a return, the product must be in the same condition in which you received it, unworn or unused, with tags and in the original packaging. You must also have your receipt or proof of purchase.

Damaged or incorrect goods

In case you receive wrong or damaged goods, please contact us immediately within 14 days of receiving your order. Please send an email with photos and videos of the product, a detailed description of the problem and what you have done to solve it. You may be asked to return the item. For confirmed defective goods, we will send a replacement free of charge.

Exceptions / Non-returnable items

Some items cannot be returned, such as perishable goods (food, flowers, plants), personalized or made-to-order products, and personal care products (cosmetics). We do not accept returns on hazardous materials, flammable liquids, or gases. We do not accept returns on sale items or gift cards.

Exchanges

If you wish to exchange an item, the fastest way is to return it and place a new order for the new item.

READ MORE >>

Warranty

Under the 24-month Legal Guarantee, Drone24Hours is responsible to the consumer for any defects in conformity that cannot be detected at the time of purchase.

The lack of conformity exists when the product is not suitable for the use for which it is normally intended, does not conform to the description or does not possess the qualities promised by the seller, does not offer the qualities and performances usual for a good of the same type, is not suitable for the particular use desired by the consumer if brought to the attention of the seller at the time of purchase and accepted by the seller (art. 129 of the Consumer Code).

Any lack of conformity which becomes apparent within 24 months of the date of purchase of the goods must be reported within 2 months of the date of discovery of the defect.

Unless proven otherwise, it is presumed that any lack of conformity that becomes apparent within 6 months of delivery of the goods already existed on that date. In the event of a lack of conformity, the consumer has the right to have the conformity of the goods restored, free of charge, by repair or replacement (art. 130 of the Consumer Code).

The consumer may ask, at his choice, the seller to repair the goods or replace them, free of charge in both cases, unless the requested remedy is objectively impossible or excessively expensive compared to the other. Repairs or replacements must be carried out within a reasonable time from the request of the Consumer; the average time for returning the product to the Consumer is 20 days.

If Drone24hours is unable to return the repaired product within the maximum period of 60 days, the consumer may request one of the alternative remedies (replacement, termination of the contract, price reduction).

Drone24Hours will send the product for any repairs to the Technical Assistance Center authorized by the Manufacturer.

What happens if the Service Center does not find the lack of conformity?

If the lack of conformity is not found, Drone24Hours will communicate the estimate to the Customer, who can decide whether or not to carry out the repair at his own expense. In this case, any transport costs and diagnosis of the defect requested by the Assistance Center will be borne by the Customer.

Additional Information
Receiver

PNP, Frsky R-XSR, ELRS 2.4 GH, TBS Nano RX
