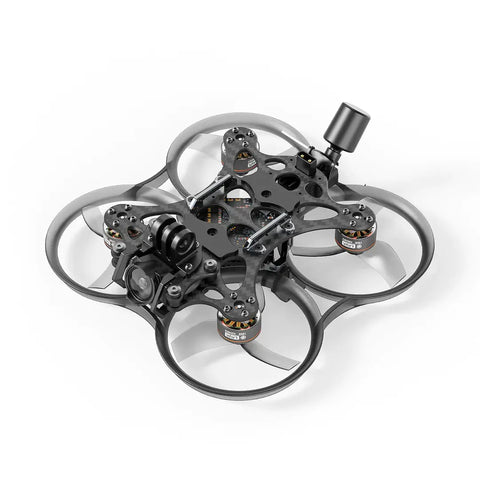

BETAFPV Pavo25 V2 No FPV system
Pavo25 V2 is the revolutionary Cinewhoop that the product team designed after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g of thrust and a CNC 7075 aluminum Y-shaped spacer to eliminate distortion and flex during flight, while also accommodating traditional HD VTX and Naked Action Cams. The new powerful propulsion system increases computing power for up to 8 minutes of flight, ensuring the smoothest, most powerful and responsive flight of all 2.5" cinewhoops.
Characteristics
- The Pavo25 V2 is specifically designed to integrate seamlessly with the DJI O3 Air unit, addressing the previous limitation of the Pavo25's inability to support O3 compatibility.
- The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance and vibration characteristics of the whole machine compared with aluminum columns, making it respond faster and smoother.
- The rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without propeller protection, giving the Pavo25 V2 more power and better flight feel.
- The whoop duct is riveted and assembled, and the new appearance and design concept allows for easier installation and stronger structure.
- It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail and HD VTX installations, but also works perfectly with lightweight cameras such as the Naked GoPro 12, DJI Action 2 and InstaGo 3.
- F722 35A AIO Brushless Flight Controller comes with a F722 chip, this board offers great performance capabilities and high processing speed up to 128k PWM frequency,
- The COB light strip assembly that can be turned on and off remotely allows pilots to enjoy flying in any scene.
Specifications
- Item: Pavo25 V2 Brushless Whoop Quadcopter
- Wheelbase: 112mm
- FC: F722 35 AIO V2
- The engine: 1506| 4200KV
- Battery connector: XT30 fixed
- Chassis: Pavo25 V2 brushless Whoop chassis
- VTX Support: DJI O3 Air Unit , Walksnail Avatar HD Pro Kit, Caddx Vista/RUNCAM Link Kit, Analog Camera
- Supported camera: DJI O3, Avatar HD Pro Caddx, RUNCAM 19mm and 20mm HD series, analog 19mm
- Flight times: 6~8 minutes
- Props: GF D63 3 blades
- RX version: ELRS, TBS
- Recommended battery: 4S 650mAh ~ 850mAh
- Battery connector: XT30
Camera and VTX system
The Pavo25 V2, like Cinewhoop, boasts compatibility with a wide range of FPV cameras and HD VTX systems, making it highly versatile. It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail and HD VTX installations, but also works perfectly with lightweight cameras such as the Naked GoPro 12, DJI Action 2 and InstaGo 3, thanks to the included injection-molded camera bracket. The new shock-absorbing gimbal design is used in combination with the frame, effectively solves the video jelly problem and improves the stability of FPV cameras. It allows the drone to capture exciting freestyle scenes at high speed and produce professional-level aerial footage.
Pavo25 V2 frame kit
The Pavo25 V2 whoop duct can enhance an additional 200g thrust and also a CNC 7075 aluminum Y-shaped spacer to eliminate distortion and bending during flight. Powerful and smooth flight is guaranteed. The modular chassis design ensures a streamlined look, with no protruding wires, while the fixed power port design allows for simple one-handed connection. Mounting the chassis is a breeze, requiring simply tightening the four bottom screws and using the riveted design for convenient duct detachment.
The whoop duct design fully refers to the aerodynamic principle of the rocket engine nozzle, and uses different heights and thicknesses between the upper edge and the lower edge, through the compression of the incoming air inside the duct, a substantial increase in exhaust pressure. As a result, an additional thrust of 200g is generated, simultaneously improving the horizontal stability of the cinewhoop. Thanks to increased power and exceptional flight stability, performing challenging maneuvers such as flips and turns on the Pavo25 V2 results in remarkably stable and precise responses. Pilots will experience an improved flying sensation.
The Y structural shape means that the 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC mount is made of aircraft standard material: 7075 aluminum alloy to increase strength and ensure pilots can embark on powerful flights with confidence. Furthermore, the conduit is securely fixed with only 4 screws, while the remaining connections use ancient Chinese traditional riveting technique to ensure quick assembly and disassembly, including the fixed power port design.
Powerful propulsion system
1505 4600KV brushless motor is designed for 4S 2.5'' quads, with excellent torque output performance. Combined with GF D63 3-blade Propellers with 1.5mm shaft and F722 35A AIO V2 Flight Controller, it could offer pilots to play freestyle easily. Easily meets the most demanding drone competitions and professionally shot movie creation needs, providing you with an exceptional flying experience and high-quality image output, bringing our Pavo25 V2 Whoop Brushless Quadcopter to a smoother and more efficient flight level. stable.
Flight controller
F722 35A AIO brushless flight controller comes with a F722 chip, this board offers great performance capabilities and high processing speed up to 128k PWM frequency, integrated a 16MB flash memory chip dedicated to Blackbox recording. There are 6 complete UARTs available on this board. Equipped with a 6-pin plug&play port, it can directly connect HD Digital VTX without soldering work. Supporting input voltage up to 2~6S, this FC pushes the FPV pilot to the max, providing reliable and smooth flight for drones.
Shine on the night cruise
The Pavo series COB LED strip is a 5V powered LED strip measuring 560mm*4mm. The Whoop Brushless Pavo25 V2 quadcopter offers the amazing feature of controlling the integrated COB light strip via a radio transmitter. This convenient feature allows flexible control of the light strip's brightness and on/off status. Since light pollution should be eliminated when shooting videos, the COB should be turned off. However, COB can be reactivated during racing and freestyle, enhances the atmosphere and provides navigation indicators, allowing riders to easily switch between scenes at any time, such as entertainment, sports or movie making, meeting their specific needs.
ND filter for DJI O3 camera
BETAFPV ND Filter for DJI O3 Camera, UV, CPL, ND8, ND16, ND32, is specifically designed for Pavo 25 V2, Pavo20 And Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air ND filters are tailor-made for the DJI O3 Air and are capable of reducing the amount of light entering the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures while flying. These lightweight filters are made with a high-quality optical class that ensures optimal image sharpness and are too easy to install on the structure.
FAQ
- Download the STL file for Pavo25 V2
- Download FC Firmware and CLI Dump File (F722 35A AIO V2)
- Download the manual for the Whoop Brushless Pavo25 V2 quadcopter
- Click to watch the DJI O3 Air on Pavo25 V2 installation guide video
Recommended parts
- Tattu R-Line 850mAh 14.8V 4S1P 95C with XT30 plug
- Tattu 850mAh 4S 14.8V 75C Lipo with XT30 Plug
- Tattu R-Line 650mAh 14.8V 4S1P 95C XT30
- Tattu 14.8V 650mAh 75C 4S1P Lipo XT30
Package Included
-
- 1 * Whoop Brushless Quadcopter Pavo25 V2
- 1 * COB Light Strip Accessory Package
- 4 x GF D63 3-Blade Props, 1.5mm Shaft (Transparent Grey)
- 1 * GoPro Mount
- 1 * Camera Holder (Left)
- 1 * Camera Holder (Right)
- 4*M1.6*8 hex flat head screw
- 4*M2*3 hex flat head screw
- 4*M2*8 hex flat head screw
- 4*M2*4 hex head screw
- 2*M2*5 hex head screw
- 2*M2*8 hex head screw
- 1 * M5 * 18 Hex Head Screw
- 1 x M5*5 anti-loosening nut
- 1 x H1.27 hex wrench
- 1 * Service Card
- 1 * Frame Instruction Manual
- 1 * Flight Controller Instruction Manual
