BT3.0 Connectors
BT3.0 connectors are designed for 2S battery, with 3 metal pins that allow power balancing while charging without an additional balancing connector. It simplifies the assembly of 2S battery and weighs only 1.28 grams, making it smaller and super light compared to normal connectors on the market. For 2S ATV riders, it is also a more cost-effective choice for 2S battery, and the best option to save a few grams from the ATV.
Characteristics
- An innovative option for the whoop 2S drone battery, designed specifically for the whoop 2S drone.
- BT3.0 connectors offer unmatched convenience by combining the functionality of a balancing charge and discharge power cable into a single connector, eliminating the need to purchase an expensive balancing charger.
- BT3.0 connectors are smaller and lighter, with a total weight of only 1.28g for both male and female connectors, compared to regular connectors.
- The BT3.0 connectors boast a nominal discharge current of 12A and an instantaneous current of up to 20A, meeting the discharge requirements of 2S batteries.
Specifications
- BT3.0 male connector: 0.6g/pc, 11.2*9.2*6.1mm
- BT3.0 female connector: 0.68g/pc, 10.1*9.1*5.4mm
- BT3.0 Male+Female Connector: 1.28g/pc
- BT3.0 XH2.54 adapter cable: 1.84g/pc, 35mm
- Whoop BT3.0 2S Coiled Cable: 1.39g/pc, 30mm
- Insertion force: 3-22N
- White color
- Metal material: gold plated copper
- Plastic material: PA9T
- Plug lifespan: 1000 times
- Rated current: 12A
- Instantaneous current: 20A
| BT3.0 | BT2.0 | XT30 | |
| Rated current | 12A | 9A | 15A |
| Instantaneous current | 20A | 15A | 30A |
| Weight | 1.28 g | 0.6 g | 1.8 g |
| Measure | 10.1*9.1*5.4mm | 8.5*6.0*4.2mm | 12.4*10.2*5.2mm |
Below is the diagram for the male and female connectors.
BT3.0 Connectors
BT3.0 connectors are 3-PIN terminal, two metal pins with a diameter of 1.3mm are used to discharge the battery, and two metal pins with a diameter of 1.3mm and one metal pin with a diameter of 1.0mm are combined into a 3PIN connector as a balanced charger for charging the battery. BT3.0 connectors have polarity markings on the soldered part but do not support reverse connections. When soldering the wires, be sure to pay attention to the positive and negative directions. The connector design prevents reverse connections, so do not force it in the opposite direction to avoid the risk of short circuit.

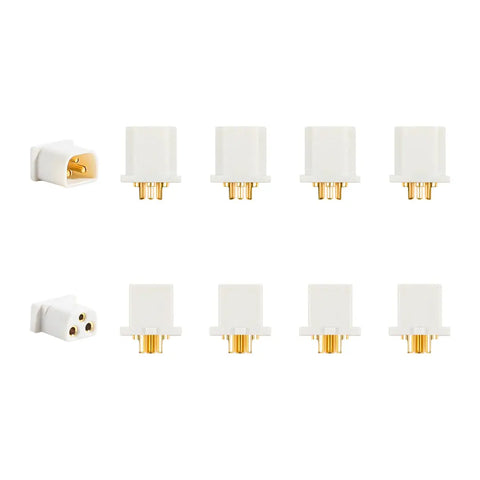

Package Included
- Item: BT3.0 Male/Female Connectors (10pcs)
- 5 x BT3.0 male connectors
- 5 x BT3.0 female connectors
