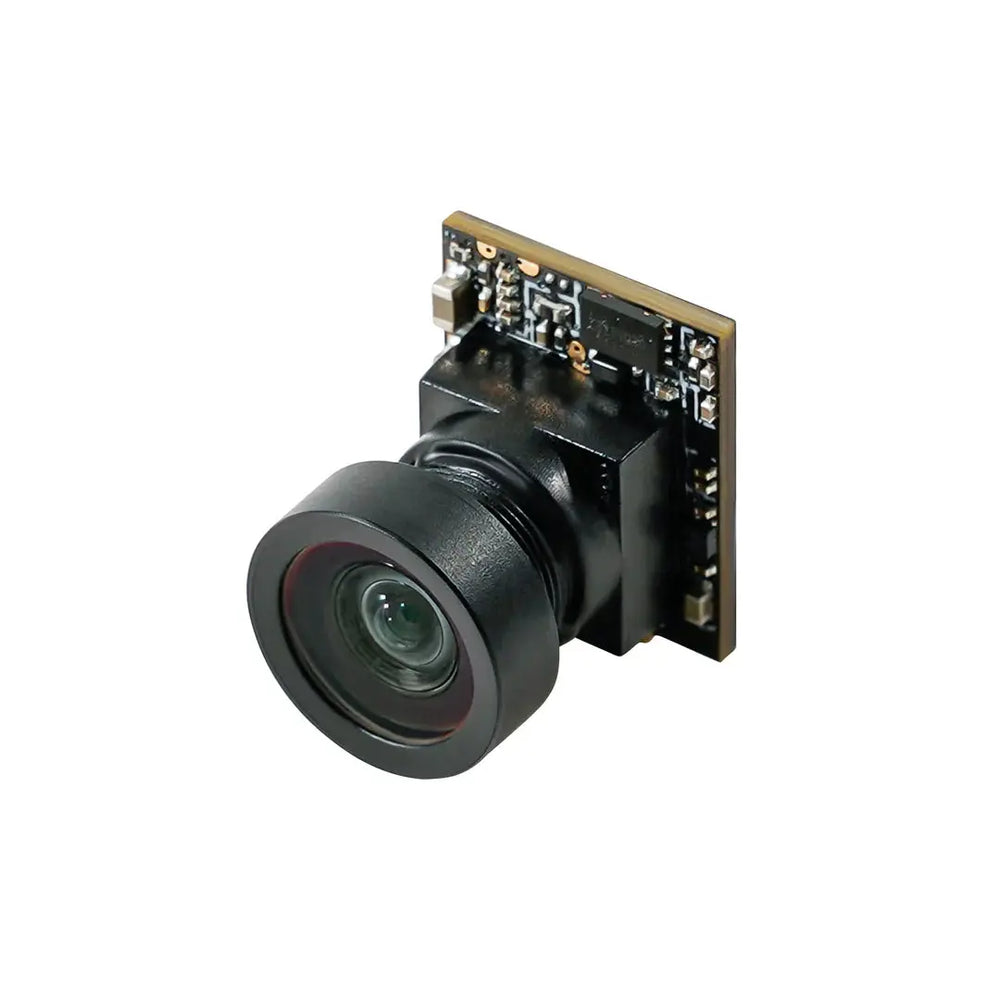

C03 FPV Micro Camera
C03 is a lightweight 1.45g camera with 1200TVL resolution designed to provide exceptional performance for micro FPV quadcopters. It has a 2.1mm lens that provides a 160° field of view, works with 4:3 aspect ratios, and features a 1/3'' CMOS sensor for clear and bright images. It comes with a BETAFPV Micro Canopy, which perfectly fits the C03 camera, making it more convenient for pilots to build quads.
Characteristics
- Comes with BETAFPV Micro Canopy and 20°/30° camera mounts, which perfectly fit C03 camera. This package allows pilots to easily build whoop drones.
- Made of high quality ABS material and covered by BETAFPV Micro Canopy, C03 FPV Micro Camera is durable enough for use.
- Miniaturized and lightweight design, only weighs 1.45g. Fully suitable for M03 5.8G VTX on the micro whoop drone.
- 1200TVL resolution and 1/3" CMOS sensor ensure clear and high quality image
- Global WDR camera, 4:3 aspect ratio, takes dynamic and clear images even in low light conditions
- 2.1mm lens, FOV 160° beyond wide angle to record wider and more beautiful scenes.
Specifications
- Article: C03 FPV Micro Camera
- Image sensor: 1/3" CMOS sensor.
- Horizontal: 1200TVL with Global WDR
- Signal system: NTSC (4:3)
- Lens: 2.1mm (M7) 160° field of view
- S/N ratio: >50 dB
- Electronic shutter speed: automatic
- Automatic Gain Control (AGC): Automatic
- Minimum Illumination: 0.01 Lux @ 1.2 F
- D-WDR: Automatic
- Day/Night: Color
- Power supply: DC 3-5.5V
- Current: 100mA at 5V / 120mA at 3.3V
- Housing material: ABS
- Dimensions: 11 x 14.1 x 13.5 mm
- Net weight: 1.45 g
Plug-N-Play Connector
C03 FPV micro camera is equipped with JST-0.8 connector, special plug-and-play design, easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03VTX and NBD BeeBrain flight controllers.
Recommended Parts
- Canopy: BETAFPV Micro Camera Canopy 2022
- VTX: BETAFPV M03 5.8G VTX
- FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain Flight Controllers
- Drones: Meteor65/75 drones or other micro whoop drones on the market.
Package Included
- 1 * C03 FPV Micro Camera
- 1 * BETAFPV Micro Canopy
- 1 x Camera Mount with 20° C02 Lens
- 1 x C03 20° Lens Camera Mount
- 1 x 30° C03 Lens Camera Mount
- 3 * Decorative parts
- 4 screws M1.4*5 (tape)
- 6 x M1.4*4 screws (black)
