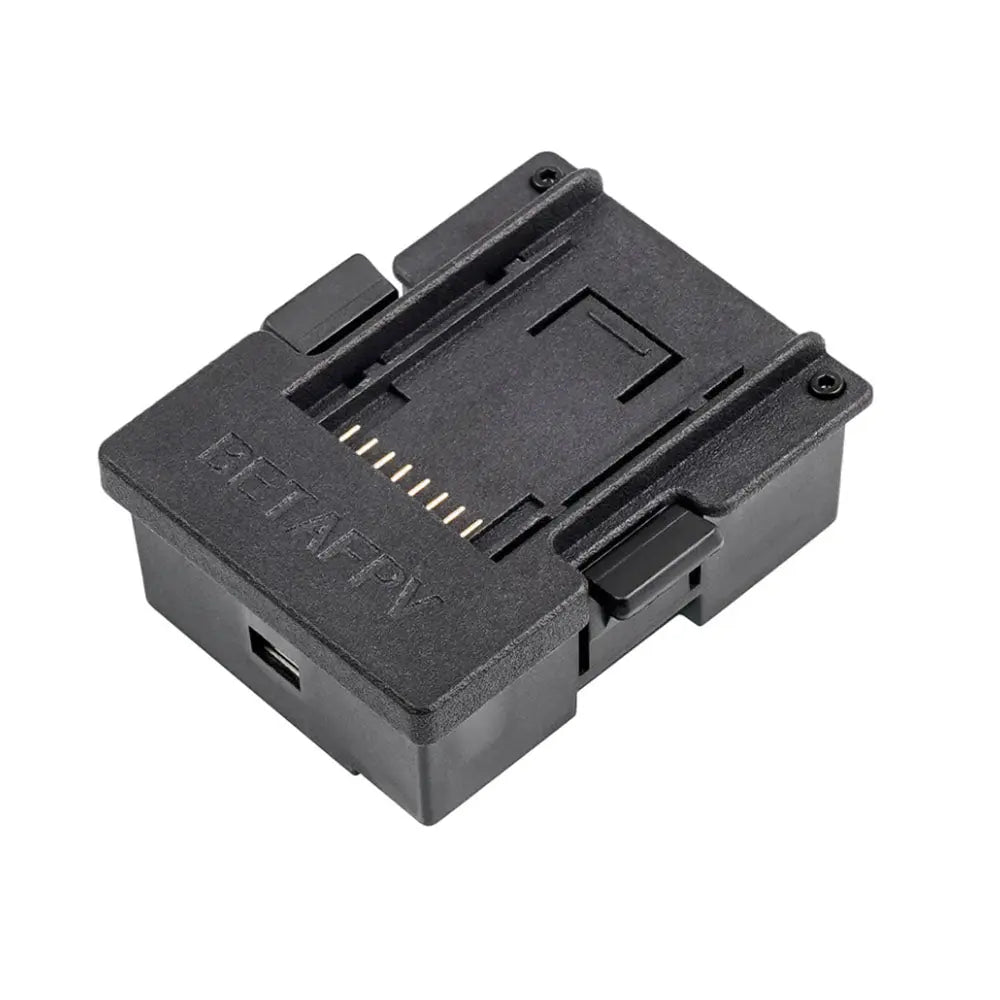

- Item: Micro-Nano Module Adapter/Micro-Nano Module PCBA
- Size: 65*48*28mm (JR module size)
- Weight: 25 g
- Input: JR module compartment (micro module compartment)
- Output: Nano module bay (Lite module bay)
- Supported Radio Transmitter: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
Radiomaster TX16S/TX18S, TBS Mambo - Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX, Frsky XJT Lite/R9M Lite/R9M Lite Pro.
PCBA only
Compared with the previous version, the appearance of the PCBA has been changed. The boards also add 3PIN GH1.25 terminal socket, which is suitable for other non-OpenTX radio controllers. In addition, the PCBA can be used directly without a case or used with a printed case.
The Micro-Nano Module Adapter (PCBA) is available for those who can print the case themselves. You can download the STL file of the adapter case on our technical support page.
Note: Make sure the wiring is correct if the PCBA is used without case.
Radio transmission supported
The module adapter is suitable for transmitters with Micro port (or JR port). For example, Frsky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, Jumper T18, etc.
Diagram
Below is the schematic of the standard micro-nano module adapter
Below is the schematic for the PCBA only.
Recommended part
ELRS Module NanoTX is the first BETAFPV module, based on the ExpressLRS design. ExpressLRS is one of the fastest RC links available while still offering long range performance.
Package Included
- 1 * Micro-nano module adapter
- 1 * Converter Cable
- 1 * Double-sided tape
