BabyApe Ⅱ FPV Drone RTF
BabyApe Ⅱ RTF is the ideal choice for beginners who want to learn how to use fpv drones.

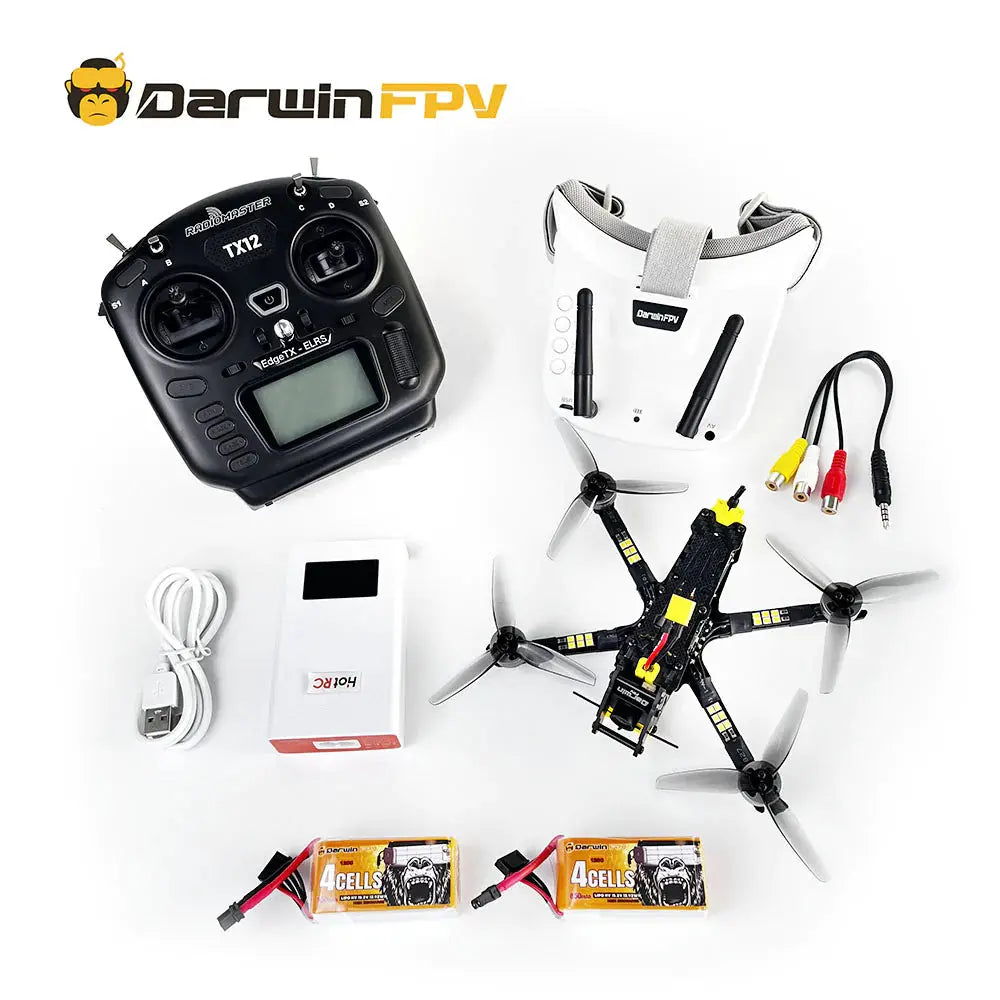

The BabyApe Ⅱ kit includes BabyApe Ⅱ fpv drone, Radiomaster TX12 MARK II transmitter, 3 inch dual 5.8G 40CH antenna goggles, 4S 850mAh battery and charger, etc., to solve your problems of not knowing how to pair them.
Compared with the first generation Baby Ape, BabyApe Ⅱ has a more powerful configuration, adopts more reliable manufacturing technology and new power system, and has a higher level of performance, durability and power.
With Radiomaster TX12 MARK II transmitter and 4s 850mAh batteries, the flight time can reach 13 minutes, the flight distance is 1.5 kilometers, and the maximum speed is 92 km/h.
Characteristics
- BabyApe Ⅱ uses 1504 motors with 3.5 inch propellers, which have high power and faster response.
- The glue potting protects the camera and stack from damage caused by contact with metal particles, fine sand, gravel, weeds or moisture, and the complete electronic system is more reliable and durable.
- A buzzer and more LED lights are added, which are very useful for beginners who often encounter scenarios such as battery overcharging, drone crashing due to incorrect operation, and drone searching.
- Radiomaster TX12 MARK II transmitter with integrated ELRS module and up to 2 kilometers remote control range. Hall joystick makes remote control more precise. With very high cost performance and is the best match for BabyApe Ⅱ.
- Equipped with VR009 5.8G 3-inch 40CH dual antenna glasses, small in size and lightweight, with dual antenna reception, stable signal and a delay of up to 10ms.
Specifications
BabyApe Ⅱ 4s analog FPV drone
- Model: Baby Ape Ⅱ Drone FPV
- Wheelbase: 156mm
- Dimensions: 126mm x 150mm x 50mm
- Flight Controller: F411 MPU6500 AT7456E
- ESC: Bluejay 48KHz 3-6S 30A
- Camera: DarwinFPV “Cement” waterproof camera.
- VTX: 5.8G 600mW
- Motor: 1504-3600KV (4S version)
- Propeller: HQProp T3.5x2x3GR-PC
- Recommend battery: LiPo 4S 850mAh
- Hovering Time: 13 minutes (4S 850mAh battery)
- Farthest distance: 1.5 km
- Maximum speed: 92 km/h
Radiomaster TX12 MARK II transmitter
- Dimensions: 170*159*108mm
- Weight: 363g
- Frequency: 2.400GHZ-2.480GHZ
- RF Chip: ExpressLRS
- Voltage range: 6.6-8.4V DC
- Channels: up to 16 (depending on the receiver)
- Display: 128*64 monochrome LCD display
- Gimbal: High precision room gimbal
- External module: JR/FrSKY/Crossfire compatible
- SD Card: Included
Darwin ELRS 2.4G receiver
- Weight: 2.9g±0.2g
- Dimensions: 14.2mm x 22.0mm x 4mm
- Frequency: 2.4GHz ISM
- Frequency Rate: 25Hz-500Hz
- RF Power: 100mW
- Voltage: 5V
- Protocol:CRSF
- Firmware: BETAFPV_Nano_2400_RX
VR009 3 inch 5.8G 40CH dual antenna monitor
- Display ratio: 16:9
- LCD Screen Screen Size: 3.0 inch
- Resolution: 480*320
- Battery: 3.7V/1200mAh
- Usage time: 2.5 hours
4S 850mAh Lipo battery
- Voltage: 15.2V
- Capacity: 850mAh
- Discharge rate: 120°C
- Charging rate: 1°C to 5°C
- Exhaust Connector: XT30
- Net Weight: 89g
- Dimensions (L*W*H): 63*30*27 mm
Hotrc A400 balanced charger
- Weight: 130g
- Dimensions: 98 x 60 x 28mm
- Battery type: 4s 3s lipo (11.1V/14.8V).
- Maximum charging current: 3000mAh
- Balanced current: 300mAh/cell
- Maximum charging power: 40W
- Charge stop voltage: 4.2V±0.02V
- Working temperature: 0-40℃
Recommended parts
- Tattu R-Line 650mAh 14.8V 4S1P 95C
- Tattu R-Line 750mAh 14.8V 4S1P 95C XT30
- Tattu 850mAh 4S 14.8V 75C XT30
- Tattu R-Line 850mAh 14.8V 4S1P 95C XT30
- DarwinFPV 850mAh 4S 15.2V 120C
Package Included
- 1 * BabyApe Ⅱ Analog FPV Drone
- 1 * Radiomaster TX12 MARK II Transmitter
- 1*R009 5.8G dual 40CH antenna 3 FPV glasses included
- 1 * Hotrc A400 Balanced Charger
- 4 * HQProp T3.5x2x3GR-PC Propeller (2cw+2ccw)
- 2 * Drum Strap (10x170mm）
- 2 * EVA Pad (Thickness: 10㎜)
- 1 * Pack of Replacement Screws
- 1*sticker
- 1 * Manual
NOTE: The package does not include the batteries depicted in the product images, they are sold separately.
