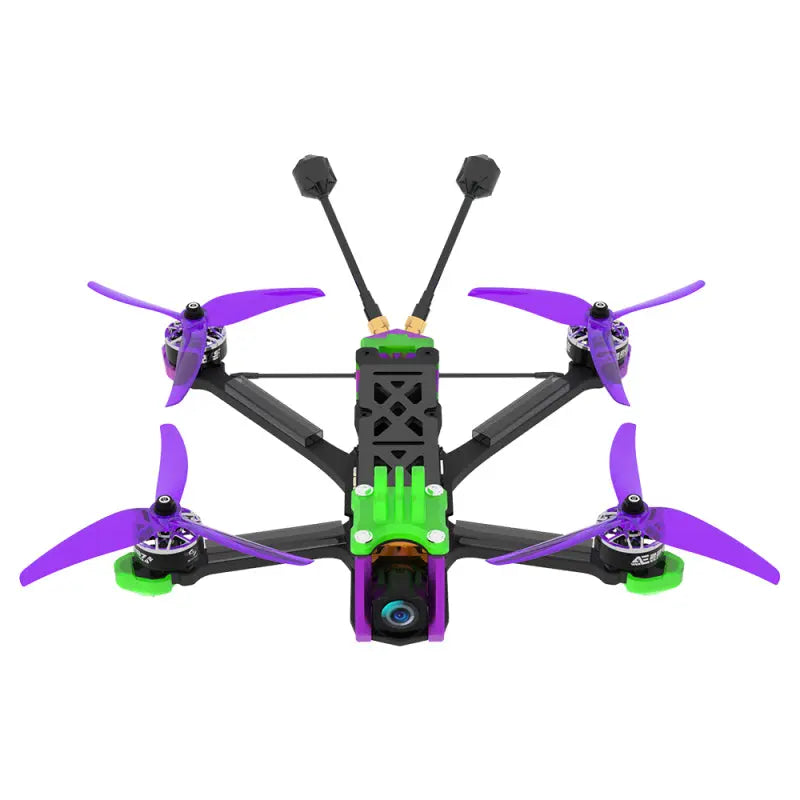

Axisflying MANTA5 SE deadcat
Il telaio MANTA di Axisflying nasce dall’ascolto attento della community FPV e dall’analisi approfondita delle esigenze dei piloti freestyle. Combinando componenti in alluminio CNC con piastre in carbonio di alta qualità, Axisflying ha progettato un telaio innovativo, robusto e unico nel suo genere.
Progettato per offrire massima stabilità, resistenza e protezione, il MANTA è la scelta ideale per chi cerca un telaio performante nel freestyle, sia in analogico che in digitale.
Caratteristiche Principali
-
Struttura in alluminio CNC abbinata a piastre in carbonio T700 ad alta resistenza per una costruzione solida e durevole.
-
Compatibilità dual stack: supporta sistemi di montaggio 20×20 mm e 30.5×30.5 mm, adatto a tutte le configurazioni sul mercato.
-
Montaggio VTX flessibile: compatibile con M2 (20×20 mm) e M3 (30.5×30.5 mm), perfetto per VTX analogici e digitali (DJI Air Unit, Vista, ecc.).
-
Supporto per camere FPV da 19-20 mm, con piastre laterali in alluminio che proteggono efficacemente la camera. La nuova sezione stampata assicura maggiore stabilità della lente, eliminando l'effetto jelly.
-
Montaggio motori 16×16 mm. Consigliato l’uso con motori AF227, AF236, BlackBird V3 e eliche freestyle da 4.9” a 5.1”.
Configurazione Consigliata
-
Motori: Axisflying C246 Cinematic
-
Batterie: LiPo 4S / 6S da 1050–1500 mAh
-
Stack: Axisflying ArgusPRO 55A / F7
-
Eliche: Axisflying, Gemfan o HQ da 4.9" a 5.1"
Specifiche
Nome Prodotto
Axisflying MANTA 5 SE DC
Telaio
Telaio Axisflying MANTA 5 SE DC
-
Interasse (Wheelbase): 226 mm
-
Peso: 454 ± 10 g
-
Spessore piastra superiore: 2 mm
-
Spessore piastra centrale: 3 mm
-
Spessore piastra inferiore: 3 mm
-
Spessore bracci: 6 mm
Elettronica a Bordo
-
Flight Controller (FC): Axisflying Argus ECO F722
-
ESC: Axisflying Argus ECO 60A 6S (firmware Bluejay 8 Bit)
-
Gyroscopio: ICM-42688-P
-
VTX: DJI O4 Unit Pro
Motori e Eliche
-
Motori: AE2207 V2 – 1960KV
-
Eliche: 4.9 × 3.3 × 3 (tri-pala, alta efficienza)
Alimentazione
-
Connettore batteria: XT60
-
Batterie consigliate: LiHV / LiPo 6S da 1050–1300 mAh
Riceventi Compatibili
-
TBS Crossfire Nano RX
-
ELRS 2.4 GHz
-
ELRS 915 MHz
il pacchetto include
-
Eliche (2 set)
-
Antenna VTX
-
Chiave a L (M2 & M3) x1
-
Adesivo antiscivolo per batteria di ricambio
-
Fascette di ricambio per batteria
-
Viti di fissaggio per GoPro (con dadi inclusi)
-
Guida rapida x1
-
Manuale istruzioni GPS x1
